Troubleshooting Conan ZFS GitHub ARC Container Initialization slowness

Introduction

Continuing our work with GitHub ARC with ZFS and Conan...

GitHub ARC with ZFS and Conan

Check out Excalidraw and their nifty diagramming tool!

When we left off, we were seeing that our GitHub ARC workflows were taking a significant amount of time to start when using containerMode: kubernetes as opposed to containerMode: dind.

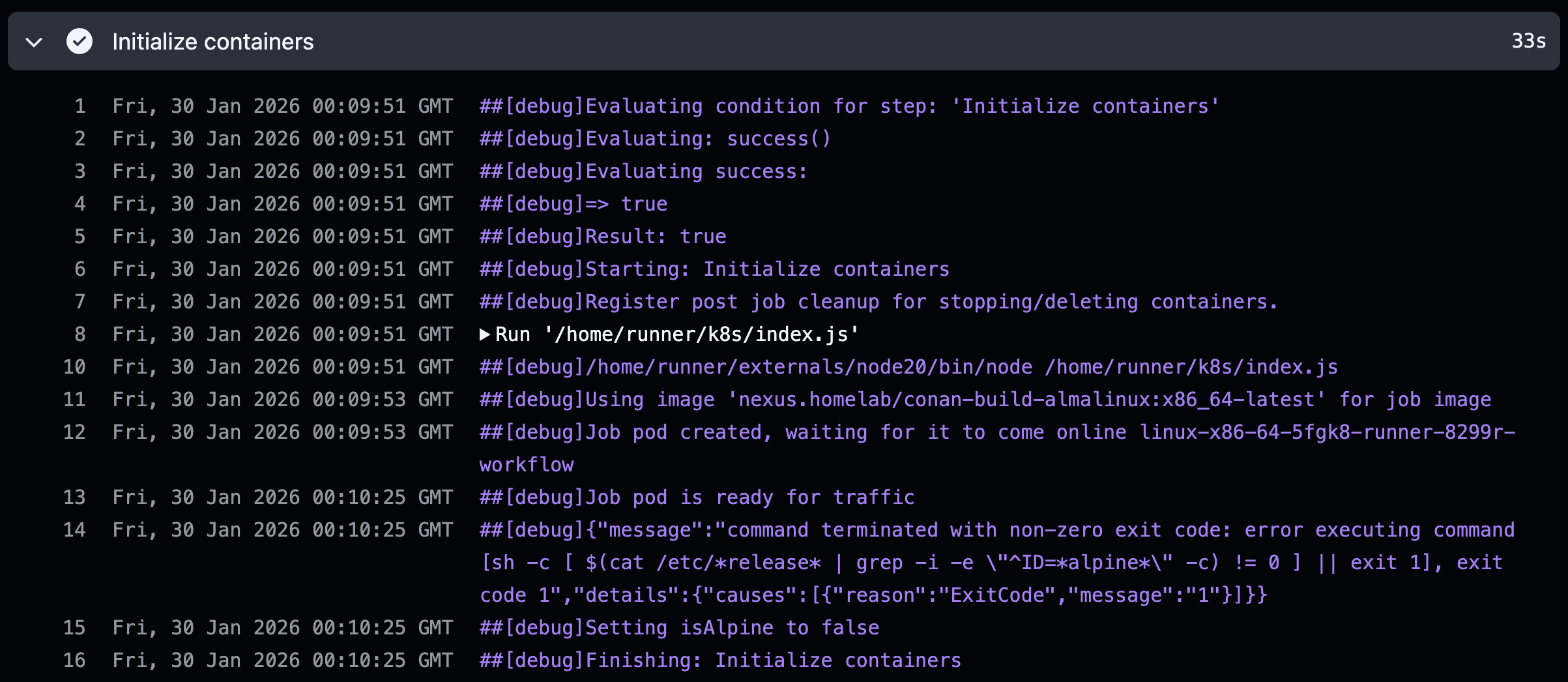

Example: ARC K8s Runner "Initialize containers" workflow step

This step normally takes no more than 1-3seconds, but is consistently taking 30+ seconds in our current setup. In our small-scale example, that delay is even longer than the time our ZFS caching solution saves us! (When compared to downloading our dependencies from artifact management.)

We did not experience anything odd or unexpected related to performance in our devContainer demo, so this new development is concerning. This issue is critical to resolve for the success of this project!

Since I've already been documenting each step of setting up this solution, this was a prime opportunity to document the process of troubleshooting a performance issue. Hopefully gaining some more insight into how the infrastructure is working in the process as well as I try to explain it here.

I've left out much of the drudgery and trial & error involved, but tried to share some of the more interesting misdirections and bad guesses. They're just part of the fun.

Environment

Hardware

We'll be using the same hardware as our previous demos. All performance optimizations in this demo are done in the software configuration, we're not doing any hardware optimization. This solution should perform regardless of the hardware involved.

• Server - AMD 8945HS/64GB/SSD
• Workstation - AMD 9900X/32GB/SSD
• Notebook - Macbook Pro M4 Pro
• Network - Ubiquiti UniFi 2.5Gb/s Switch

Software

• GitHub Actions Runner Controller (ARC)
• OpenZFS filesystem and storage platform
• OpenEBS with Local PV ZFS plugin
• Conan C/C++ Package Manager
• Docker - ConanToolchain Docker Container Image
• Sonatype Nexus Community Edition

GitHub ARC built-in debugging

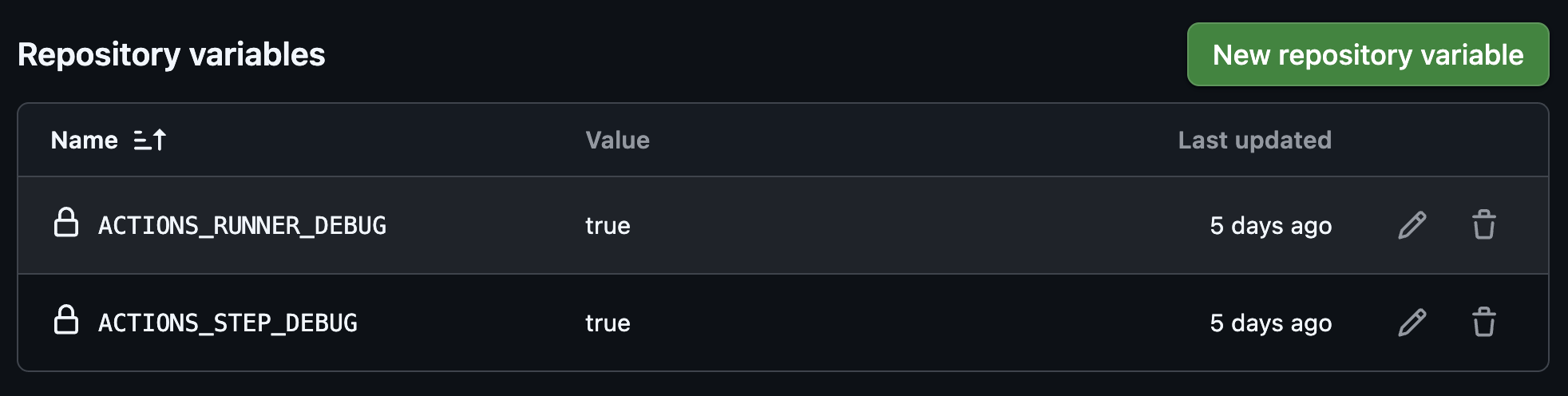

We'll start by enabling the maximum logging GitHub Actions can provide. We'll add two new variable definitions to the repo for GitHub Actions to use.

• https://docs.github.com/en/actions/how-tos/monitor-workflows/enable-debug-logging

Variable	Value
ACTIONS_RUNNER_DEBUG	"true" (string)
ACTIONS_STEP_DEBUG	"true" (string)

Breaking it down

While GitHub does not provide granular timing data in its log files, it can show us precise timestamps for each log entry in the web UI by pressing Shift + T while on the job log screen. Combined with enabling debug logging this gives us something to work with at least.

Breaking this down, we can see where the majority of the time is going:

Fri, 30 Jan 2026 00:09:53 GMT ##[debug]Job pod created, waiting for it to come online linux-x86-64-5fgk8-runner-8299r-workflow
Fri, 30 Jan 2026 00:10:25 GMT ##[debug]Job pod is ready for traffic

For this particular job, 32s of the total 33s of the "Initialize containers" step is spent waiting for the created Pod to start running. Looking at the source code we can locate the debug messages to see what's going on in between the log messages.

actions/runner-container-hooks/packages/k8s/src/hooks/prepare-job.ts

  core.debug(
    `Job pod created, waiting for it to come online ${createdPod?.metadata?.name}`
  )

  try {
    await waitForPodPhases(
      createdPod.metadata.name,
      new Set([PodPhase.RUNNING]),
      new Set([PodPhase.PENDING]),
      getPrepareJobTimeoutSeconds()
    )
  } catch (err) {
    await prunePods()
    throw new Error(`pod failed to come online with error: ${err}`)
  }

  core.debug('Job pod is ready for traffic')

waitForPodPhases()

While waitForPodPhases() is probably not going to be the source of our slowness, it's not providing much insight into what's happening either.

Let's take a look at the source to see what it does.

actions/runner-container-hooks/packages/k8s/src/k8s/index.ts

export async function waitForPodPhases(
  podName: string,
  awaitingPhases: Set<PodPhase>,
  backOffPhases: Set<PodPhase>,
  maxTimeSeconds = DEFAULT_WAIT_FOR_POD_TIME_SECONDS
): Promise<void> {
  const backOffManager = new BackOffManager(maxTimeSeconds)
  let phase: PodPhase = PodPhase.UNKNOWN
  try {
    while (true) {
      phase = await getPodPhase(podName)
      if (awaitingPhases.has(phase)) {
        return
      }

      if (!backOffPhases.has(phase)) {
        throw new Error(
           `Pod ${podName} is unhealthy with phase status ${phase}`
         )
      }
      await backOffManager.backOff()
    }
  } catch (error) {
    throw new Error(`Pod ${podName} is unhealthy with phase status ${phase}`)
  }
}

class BackOffManager {
  private backOffSeconds = 1
  totalTime = 0
  constructor(private throwAfterSeconds?: number) {
    if (!throwAfterSeconds || throwAfterSeconds < 0) {
      this.throwAfterSeconds = undefined
    }
  }

  async backOff(): Promise<void> {
    await new Promise(resolve =>
      setTimeout(resolve, this.backOffSeconds * 1000)
    )
    this.totalTime += this.backOffSeconds
    if (this.throwAfterSeconds && this.throwAfterSeconds < this.totalTime) {
      throw new Error('backoff timeout')
    }
    if (this.backOffSeconds < 20) {
      this.backOffSeconds *= 2
    }
    if (this.backOffSeconds > 20) {
      this.backOffSeconds = 20
    }
  }
}

waitForPodPhases() uses a typical binary exponential backoff to poll Kubernetes for our workflow container until it gets from Pending to Running state. This is not ideal here but it does have a max delay interval and a maximum wait time set, so we're not going to worry about it.

Conclusion

waitForPodPhases() is not the source of our delay, but the exponential backoff may be making the problem appear worse than it is. For some reason Kubernetes is delaying our pod startup with ARC but not with our devContainer.

We'll need to go look at the Kubernetes logs for our next clues.

Kubernetes Pod startup troubleshooting

Now that we're focused specifically on Kubernetes, we can directly compare our devContainer pod startup to our GitHub ARC Workflow pod startup.

Monitoring devContainer startup

The first step we'll take is to start one of each of our workflow and devContainer pods, watching the timing on our devContainer to verify that our startup delay doesn't occur.

We'll use the below manifest to test our devContainer pod startup. We've changed it a bit since our devContainer demo to use the same volume syntax as our GitHub ARC hook extension.

Previously we created the conan-home PersistentVolumeClaim separately from the pod and then mounted it. We'll switch to including the conan-home PVC as an ephemeral volume defined using a volumeClaimTemplate. We're not expecting this to be the cause of our startup delay, but we do want to elimintate it as a variable before going further.

DevContainer Pod manifest with conan-home PVC

apiVersion: v1
kind: Pod
metadata:
  name: devcontainer-pod-test
  namespace: devcontainer
  labels:
    app: conan
    cache: gcc12-toolchain-main
spec:
  initContainers:
  - name: code-init
    image: "nexus.homelab/conan-docker-build-ubuntu:x86_64-latest"
    securityContext:
      runAsUser: 0
      runAsGroup: 0
    command: ["/bin/sh", "-c", "git clone https://github.com/DaverSomethingSomethingOrg/conan-toolchain-demo.git /workspace/conan-toolchain-demo"]
    volumeMounts:
    - mountPath: /workspace
      name: code-volume

  containers:
  - name: conan-container
    image: "nexus.homelab/conan-docker-build-ubuntu:x86_64-latest"
    imagePullPolicy: IfNotPresent
    securityContext:
      runAsUser: 0
      runAsGroup: 0
    env:
    - name: CS_DISABLE_FILE_DOWNLOADS
      value: "1"
    - name: CONAN_HOME
      value: /CONAN_HOME
    workingDir: /workspace/conan-toolchain-demo
    command: ["/bin/sh", "-c", "while sleep 1000; do :; done"]
    volumeMounts:
    - mountPath: /workspace
      name: code-volume
    - mountPath: /home/vscode/.cache
      name: cache-volume
    - mountPath: /CONAN_HOME
      name: conan-home

  volumes:
  - name: code-volume
    emptyDir: {}
  - name: cache-volume
    emptyDir: {}
  - name: conan-home
    ephemeral:
      volumeClaimTemplate:
        spec:
          accessModes: [ "ReadWriteOncePod" ]
          storageClassName: "openebs-zfspv"
          dataSource:
            name: gcc12-toolchain-main
            kind: PersistentVolumeClaim
          resources:
            requests:
             storage: 200Gi
          volumeMode: Filesystem

We'll use a simple bash script to time the pod startup until the pod reaches "Running" status.

timeStartup.sh source

#!/bin/bash

FILENAME=$1

SCRIPTNAME=$(basename $0)

if [ -z "${FILENAME}" ]; then
    #echo "Usage: ${SCRIPTNAME} <file name> <pod name> <namespace>" 1>&2
    echo "Usage: ${SCRIPTNAME} <file name>" 1>&2
    exit 1
fi

if [ ! -f "${FILENAME}" ]; then
    echo "File not found: ${FILENAME}" 1>&2
    exit 1
fi

PODNAME=$(yq --raw-output ".metadata.name" "${FILENAME}" | head -1)
NAMESPACE=$(yq --raw-output ".metadata.namespace" "${FILENAME}" | head -1)

timingLoop(){
    kubectl apply -f "${FILENAME}" -n "${NAMESPACE}"

    while [ 0 ]; do

        STATUS=$(kubectl get pod -n "${NAMESPACE}" -o template "${PODNAME}" --template={{.status.phase}})
        echo -n "[${SECONDS}s] Status: ${STATUS}."

        if [ "${STATUS}" = "Running" ]; then
            break
        fi

        sleep 1
        echo "  Looping..."
    done
}

SECONDS=0
time timingLoop

❯ ./timeStartup.sh devcontainer-pod-test.yaml
pod/devcontainer-pod-test created
[0s] Status: Pending.  Looping...
[1s] Status: Pending.  Looping...
[2s] Status: Pending.  Looping...
[3s] Status: Pending.  Looping...
[4s] Status: Running.
real    0m4.417s
user    0m0.473s
sys     0m0.208s

dave@hephaestus ~/projects/K3sDevContainer/devContainer                                                                                                         09:38:34
❯

DevContainer Pod Events

❯ kubectl describe pod devcontainer-pod-test -n devcontainer
[...]
Events:
  Type     Reason            Age                    From               Message
  ----     ------            ----                   ----               -------
  Warning  FailedScheduling  2m19s                  default-scheduler  0/1 nodes are available: waiting for ephemeral volume controller to create the persistentvolumeclaim "devcontainer-pod-test-conan-home". preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.
  Warning  FailedScheduling  2m19s (x2 over 2m19s)  default-scheduler  0/1 nodes are available: pod has unbound immediate PersistentVolumeClaims. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.
  Warning  FailedScheduling  2m18s (x2 over 2m18s)  default-scheduler  0/1 nodes are available: pod has unbound immediate PersistentVolumeClaims. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.
  Normal   Scheduled         2m18s                  default-scheduler  Successfully assigned devcontainer/devcontainer-pod-test to hephaestus.homelab
  Normal   Pulled            2m18s                  kubelet            Container image "nexus.homelab/conan-docker-build-ubuntu:x86_64-latest" already present on machine
  Normal   Created           2m18s                  kubelet            Created container: code-init
  Normal   Started           2m18s                  kubelet            Started container code-init
  Normal   Pulled            2m17s                  kubelet            Container image "nexus.homelab/conan-docker-build-ubuntu:x86_64-latest" already present on machine
  Normal   Created           2m17s                  kubelet            Created container: conan-container
  Normal   Started           2m17s                  kubelet            Started container conan-container

The pod status entries confirm the lack of delay as well:

DevContainer Pod Status Changes

❯ kubectl get pod devcontainer-pod-test -n devcontainer -o yaml
[...]
status:
  conditions:
  - lastProbeTime: null
    lastTransitionTime: "2026-01-19T17:38:31Z"
    status: "True"
    type: PodScheduled
  - lastProbeTime: null
    lastTransitionTime: "2026-01-19T17:38:32Z"
    status: "True"
    type: PodReadyToStartContainers
  - lastProbeTime: null
    lastTransitionTime: "2026-01-19T17:38:32Z"
    status: "True"
    type: Initialized
  - lastProbeTime: null
    lastTransitionTime: "2026-01-19T17:38:33Z"
    status: "True"
    type: ContainersReady
  - lastProbeTime: null
    lastTransitionTime: "2026-01-19T17:38:33Z"
    status: "True"
    type: Ready
[...]

Comparing to GitHub ARC workflow pod startup

Checking the same logs for our GitHub ARC workflow pod we can clearly see a difference, but it's not quite clear why yet.

GitHub ARC Workflow Pod Events

❯ kubectl describe pod linux-x86-64-5fgk8-runner-v84xb-workflow -n devcontainer
[...]
Events:
  Type     Reason       Age   From     Message
  ----     ------       ----  ----     -------
  Warning  FailedMount  107s  kubelet  Unable to attach or mount volumes: unmounted volumes=[conan-home], unattached volumes=[], failed to process volumes=[conan-home]: error processing PVC devcontainer/linux-x86-64-5fgk8-runner-v84xb-workflow-conan-home: PVC is not bound
  Normal   Pulled       91s   kubelet  Container image "nexus.homelab/conan-build-almalinux:x86_64-latest" already present on machine
  Normal   Created      91s   kubelet  Created container: job
  Normal   Started      91s   kubelet  Started container job

GitHub ARC Workflow Pod Status Changes

❯ kubectl get pod linux-x86-64-5fgk8-runner-v84xb-workflow -n devcontainer -o yaml
[...]
status:
  conditions:
  - lastProbeTime: null
    lastTransitionTime: "2026-01-30T00:17:15Z"
    status: "True"
    type: PodScheduled
  - lastProbeTime: null
    lastTransitionTime: "2026-01-30T00:17:15Z"
    status: "True"
    type: Initialized
  - lastProbeTime: null
    lastTransitionTime: "2026-01-30T00:17:32Z"
    status: "True"
    type: PodReadyToStartContainers
  - lastProbeTime: null
    lastTransitionTime: "2026-01-30T00:17:32Z"
    status: "True"
    type: ContainersReady
  - lastProbeTime: null
    lastTransitionTime: "2026-01-30T00:17:32Z"
    status: "True"
    type: Ready

A few observations here:

• There is a noticeable jump from -91s to -107s after that FailedMount event.
• The devContainer pod shows a series of FailedScheduling warnings from default-scheduler. We see no events from default-scheduler for the GitHub ARC pod at all.
• The GitHub ARC pod shows a FailedMount message that the devContainer pod does not.

We have confirmed the issue is within the Kubernetes realm, and it appears to be happening after Initialized but before PodReadyToStartContainers.

Duct tape and bailing wire

Did you notice that the pod only took 16s to get to Ready status? Why was GitHub Actions waiting 30s+?

It looks like we're not very lucky in the waitForPodPhases() cycle. Since it uses a binary exponential backoff cycle from 1s, the series of backOff() sleeps looks like:

1s + 2s + 4s + 8s + 16s = 31s

If we're not able to resolve the root cause of our performance issue, it looks like we can tune backOff() to punish us less. It would not be a comprehensive fix, and it would likely work with varying levels of success in other environments.

We could probably reclaim the majority of the last 16s sleep, cutting the delay in half. It would still be significantly slower than the 1-3s timing we're looking for however, only slightly faster than downloading from artifact management.

Digging Deeper

With the FailedMount warning there are a couple experiments for us to try.

1. Modify GitHub ARC hook extension to remove the conan-home PVC only, isolate our OpenEBS ZFS volume from GitHub ARC.
2. Diff our DevContainer Pod manifest against the manifest that GitHub ARC hook applies, there has to be something significant there.

Experiment 1: Evaluate GitHub ARC performance without conan-home PVC

Probably the easiest and fastest experiment to test is simply modifying the GitHub ARC Hook Extension ConfigMap that we set up.

Since mounting our conan-home PVC is essentially the only thing our hook extension does, there isn't much left. Rather than remove the ConfigMap, we'll leave a single debugging environment setting to make sure the PVC provisioning and mount are the only changes.

This configuration should build cleanly, but will not benefit from the ZFS cloned Conan cache at all.

GitHub ARC Hook Extension ConfigMap without conan-home PVC

apiVersion: v1
kind: ConfigMap
metadata:
  name: github-arc-container-hooks
data:
  content: \|
    metadata:
      annotations:
        example: "extension"
        annotated-by: "extension"
      labels:
        labeled-by: "extension"
    spec:
      containers:
        - name: $job
          env:
            - name: DEBUG_CONAN_HOME
              value: /CONAN_HOME

Once the ConfigMap change is applied, the GitHub ARC Runners will pick up the change automatically once the cluster nodes have a chance to resync their state. We can verify that our runners have picked up the change before running our test job by connecting to the runner container and checking the file where we chose install our hook extension.

runner@linux-x86-64-st6ng-runner-5dskd:~$ cat pod-template/content
metadata:
  annotations:
    example: "extension"
    annotated-by: "extension"
  labels:
    labeled-by: "extension"
spec:
  containers:
    - name: $job
      imagePullPolicy: IfNotPresent
      env:
        - name: DEBUG_CONAN_HOME
          value: /CONAN_HOME
runner@linux-x86-64-st6ng-runner-5dskd:~$

When we run a test job with this updated hook extension, the delay is no longer present.

BEFORE

Tue, 23 Dec 2025 17:13:51 GMT ##[debug]Job pod created, waiting for it to come online linux-x86-64-dmdc5-runner-zdjp2-workflow
Tue, 23 Dec 2025 17:14:06 GMT ##[debug]Job pod is ready for traffic

AFTER

Wed, 21 Jan 2026 17:08:58 GMT ##[debug]Job pod created, waiting for it to come online linux-x86-64-st6ng-runner-ql7f4-workflow
Wed, 21 Jan 2026 17:08:59 GMT ##[debug]Job pod is ready for traffic

The delay appears to be a conflict or compatibility issue between our GitHub ARC configuration and our OpenEBS ZFS configuration. Examining the Pod manifests further should expose the issue.

Experiment 2: DevContainer and ARC Pod Manifest differences

In order to understand why this difference is occurring, we need to look at the YAML specs for the pods. In addition to our hook extension, the k8s hook adds other environment settings and volume mounts to the workflow pod.

In order to examine the Pod manifest applied by GitHub ARC, we'll add some additional debugging to the GitHub ARC Kubernetes Hook. We'll start with dumping the workflow pod spec template to the debug log.

Deprecated?

The default GitHub ARC k8s hook in the default GitHub Actions Runner container we're using is an older version, v0.7.0. We need to be careful to ensure the changes we make are to the correct version!

Snippets from the Runner container image Dockerfile

ARG RUNNER_CONTAINER_HOOKS_VERSION=0.7.0

RUN curl -f -L -o runner-container-hooks.zip https://github.com/actions/runner-container-hooks/releases/download/v${RUNNER_CONTAINER_HOOKS_VERSION}/actions-runner-hooks-k8s-${RUNNER_CONTAINER_HOOKS_VERSION}.zip \
    && unzip ./runner-container-hooks.zip -d ./k8s \
    && rm runner-container-hooks.zip

The change we'll make is simple, just send the pod spec to the debug log.

Dumping the workflow pod spec to the debug log

root@1ab970f2f7fb:/workspaces/runner-container-hooks/packages/k8s/src# git diff -U3 k8s/index.ts
diff --git a/packages/k8s/src/k8s/index.ts b/packages/k8s/src/k8s/index.ts
index 021b383..cf8c794 100644
--- a/packages/k8s/src/k8s/index.ts
+++ b/packages/k8s/src/k8s/index.ts
@@ -17,6 +17,7 @@ import {
   useKubeScheduler,
   fixArgs
 } from './utils'
+import * as yaml from 'yaml'

 const kc = new k8s.KubeConfig()

@@ -127,6 +129,8 @@ export async function createPod(
     mergePodSpecWithOptions(appPod.spec, extension.spec)
   }

+  core.debug(`Creating workflow pod using spec: \n${yaml.stringify(appPod.spec)}`)
+
   const { body } = await k8sApi.createNamespacedPod(namespace(), appPod)
   return body
 }

We'll build a custom container image for our runners to use our modified k8s hook. It's as simple as replacing /home/runner/k8s/index.js with our custom build.

Forked Runner Dockerfile with enhanced debugging

FROM ghcr.io/actions/actions-runner:latest

COPY --chown=runner:docker index.js /home/runner/k8s/index.js

With our updated runner container image we now see the following in our "Initialize containers" workflow step log:

Initialize containers log with debugging patch applied

Mon, 19 Jan 2026 19:10:47 GMT ##[debug]Using image 'nexus.homelab/conan-build-almalinux:x86_64-latest' for job image
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]Creating workflow pod using spec:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]containers:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]  - name: job
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    image: nexus.homelab/conan-build-almalinux:x86_64-latest
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    ports: []
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    workingDir: /__w/test-actions-dev/test-actions-dev
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    command:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - tail
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    args:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - -f
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - /dev/null
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    env:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - name: GITHUB_ACTIONS
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        value: "true"
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - name: CI
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        value: "true"
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - name: CONAN_HOME
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        value: /CONAN_HOME
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    volumeMounts:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - name: work
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        mountPath: /__w
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - name: work
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        mountPath: /__e
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        subPath: externals
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - name: work
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        mountPath: /github/home
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        subPath: _temp/_github_home
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - name: work
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        mountPath: /github/workflow
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        subPath: _temp/_github_workflow
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      - name: conan-home
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        mountPath: /CONAN_HOME
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    imagePullPolicy: IfNotPresent
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]restartPolicy: Never
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]nodeName: hephaestus.homelab
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]volumes:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]  - name: work
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    persistentVolumeClaim:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      claimName: linux-x86-64-st6ng-runner-mh2j6-work
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]  - name: conan-home
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]    ephemeral:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]      volumeClaimTemplate:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]        spec:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]          accessModes:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]            - ReadWriteOncePod
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]          storageClassName: openebs-zfspv
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]          volumeMode: Filesystem
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]          dataSource:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]            name: gcc12-toolchain-main
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]            kind: PersistentVolumeClaim
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]          resources:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]            requests:
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]              storage: 200Gi
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]
Mon, 19 Jan 2026 19:10:47 GMT ##[debug]Job pod created, waiting for it to come online linux-x86-64-st6ng-runner-mh2j6-workflow

Next we'll take that spec, remove the ##[debug] line prefixes, and diff it against our devContainer spec using yq/jq.

• https://stackoverflow.com/questions/31930041/using-jq-or-alternative-command-line-tools-to-compare-json-files

After ignoring the initContainer differences we are reduced to the following diff:

diff -U1 devcontainer-pod-test_spec.yaml linux-x86-64-st6ng-runner-mh2j6-workflow_spec.yaml

--- devcontainer-pod-test_spec.yaml 2026-01-19 11:16:24.559445960 -0800
+++ linux-x86-64-st6ng-runner-mh2j6-workflow_spec.yaml   2026-01-19 11:12:52.071686552 -0800
@@ -41,32 +28,38 @@
       ],
-      "workingDir": "/workspace/conan-toolchain-demo",
-      "command": [
-        "/bin/sh",
-        "-c",
-        "while sleep 1000; do :; done"
-      ],
       "volumeMounts": [
         {
-          "mountPath": "/workspace",
-          "name": "code-volume"
+          "name": "work",
+          "mountPath": "/__w"
+        },
+        {
+          "name": "work",
+          "mountPath": "/__e",
+          "subPath": "externals"
+        },
+        {
+          "name": "work",
+          "mountPath": "/github/home",
+          "subPath": "_temp/_github_home"
         },
         {
-          "mountPath": "/home/vscode/.cache",
-          "name": "cache-volume"
+          "name": "work",
+          "mountPath": "/github/workflow",
+          "subPath": "_temp/_github_workflow"
         },
         {
-          "mountPath": "/CONAN_HOME",
-          "name": "conan-home"
+          "name": "conan-home",
+          "mountPath": "/CONAN_HOME"
         }
-      ]
+      ],
+      "imagePullPolicy": "IfNotPresent"
     }
   ],
+  "restartPolicy": "Never",
+  "nodeName": "hephaestus.homelab",
   "volumes": [
     {
-      "name": "code-volume",
-      "emptyDir": {}
-    },
-    {
-      "name": "cache-volume",
-      "emptyDir": {}
+      "name": "work",
+      "persistentVolumeClaim": {
+        "claimName": "linux-x86-64-st6ng-runner-mh2j6-work"
+      }
     },

Further ignoring the standard GitHub ARC volumes/mounts that are not showing any issues when used without conan-home, the only remaining part of the diff that's significant is this:

+  "restartPolicy": "Never",
+  "nodeName": "hephaestus.homelab",

This stands out particularly because we originally configured node affinity for our OpenEBS storage classes.

• https://openebs.io/docs/user-guides/local-storage-user-guide/local-pv-zfs/configuration/zfs-create-storageclass#zfs-pool-availability

allowedTopologies:
- matchLabelExpressions:
  - key: kubernetes.io/hostname
    values:
      - hephaestus.homelab

We also noticed the default-scheduler warnings with our devContainer, so the delay we're seeing could easily be related to scheduling.

We don't have anything conclusive yet, but we do have a solid lead to chase.

Best Guess

My best guess at this point is that mixing use of allowedTopologies and nodeName in Kubernetes scheduling constraints is probably the source of the issue. Even when the node specified is the same one used by both OpenEBS and GitHub ARC. Even when there's only one node in the cluster.

Some searching turns up OpenEBS - Issue 3667.

openebs/openebs - Issue #3667

PVC is not bound when using spec.nodeName - Issue #3667 - openebs/openebs

It's not 100% conclusive that this is the same issue, but there is a fair likelyhood of it being related. We have some questions we have that issue doesn't answer however:

• Issue #3667 is reported against localpv-hostpath, we are using ZFS Local PV.
• Issue #3667 seems to indicate the Pod should fail to start up, ours is just slow.
• Why does ours successfully start with our conan-home volume mounted after FailedMount?
  • Does it try again differently somehow?
  • Why is ours just slow?

Rather than relentlessly pursue the answers, we can simply try one more experiment to see if we can implement a workaround.

Experiment 3: ARC Pod Manifest without nodeName

Our next experiment is to simply remove nodeName constraint from the pod spec manifest that the GitHub ARC k8s hook applies.

We'll need to rebuild our runner container image once more for this modified hook.

actions/runner-container-hooks/packages/k8s/src/k8s/index.ts

diff --git a/packages/k8s/src/k8s/index.ts b/packages/k8s/src/k8s/index.ts
index 021b383..08e81ee 100644
--- a/packages/k8s/src/k8s/index.ts
+++ b/packages/k8s/src/k8s/index.ts
@@ -101,3 +102,4 @@ export async function createPod(
   } else {
-    appPod.spec.nodeName = nodeName
+    //appPod.spec.nodeName = nodeName
   }

Running a test job we see:

Fri, 23 Jan 2026 17:25:14 GMT ##[debug]Job pod created, waiting for it to come online linux-x86-64-st6ng-runner-d4n2f-workflow
Fri, 23 Jan 2026 17:25:17 GMT ##[debug]Job pod is ready for traffic

It worked! Performance was restored to ~3s on workflow pod startup.

Eureka!

It worked... but. While we were so busy patching that code in the ARC k8s Hook, we had time to think more about the code than our particular problem, and found something else! ...hiding directly in plain sight.

That code we patched...

const nodeName = await getCurrentNodeName()
if (useKubeScheduler()) {
  appPod.spec.affinity = await getPodAffinity(nodeName)
} else {
  appPod.spec.nodeName = nodeName
}

What's a useKubeScheduler()?

Since we're seeing the warnings regarding the default-scheduler for our devContainer that we're not seeing with ARC, this option to potentially change ARC's scheduling behavior and not set nodeName seems like a great option to test.

Using appPod.spec.affinity instead of appPod.spec.nodeName sounds more compatible with our use of allowedTopologies in OpenEBS, but we'll have to see what getPodAffinity(nodeName) returns.

We can test it in parallel though if we can enable useKubeScheduler().

Well, here it is...

actions/runner-container-hooks/packages/k8s/src/k8s/utils.ts

export function useKubeScheduler(): boolean {
  return process.env[ENV_USE_KUBE_SCHEDULER] === 'true'
}

export const ENV_USE_KUBE_SCHEDULER = 'ACTIONS_RUNNER_USE_KUBE_SCHEDULER'

Like so many other features of GitHub ARC, it turns out triggering this behavior is not very well documented, but some quick searching turned up the ACTIONS_RUNNER_USE_KUBE_SCHEDULER environment setting.

I can't find much documentation on it beyond it's original pull request runner-container-hooks PR#111. The community seems to be aware of it enough to try and use it, though. Some of the reported issues around it were similar to our use case and educational in general.

actions/runner-container-hooks - Pull Request #111

Add option to use the kubernetes scheduler for workflow pods - Pull Request #111 - actions/runner-container-hooks

We'll add this environment variable to our RunnerScaleSet's values.yaml.

template:
  spec:
    containers:
    - name: runner
      env:
        - name: ACTIONS_RUNNER_USE_KUBE_SCHEDULER
          value: "true"

Expand for full RunnerScaleSet template spec

template:
  spec:
    containers:
    - name: runner
      image: ghcr.io/actions/actions-runner:latest
      imagePullPolicy: Always
      command: ["/home/runner/run.sh"]
      env:
        - name: ACTIONS_RUNNER_CONTAINER_HOOKS
          value: /home/runner/k8s/index.js
        - name: ACTIONS_RUNNER_USE_KUBE_SCHEDULER
          value: "true"
        - name: ACTIONS_RUNNER_IMAGE
          value: ghcr.io/actions/actions-runner:latest # should match the runnerimage
        - name: ACTIONS_RUNNER_CONTAINER_HOOK_TEMPLATE
          value: /home/runner/pod-template/content
        - name: ACTIONS_RUNNER_REQUIRE_JOB_CONTAINER
          value: "true"
        - name: ACTIONS_RUNNER_POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
      volumeMounts:
        - name: work
          mountPath: /home/runner/_work
        - name: container-hooks-volume
          mountPath: /home/runner/pod-template
    volumes:
    - name: work
      ephemeral:
        volumeClaimTemplate:
          spec:
            accessModes: [ "ReadWriteOnce" ]
            storageClassName: "local-path"
            resources:
              requests:
                storage: 1Gi
    - name: container-hooks-volume
      configMap:
        name: github-arc-container-hooks

Running another test job we see:

Sat, 24 Jan 2026 19:32:21 GMT ##[debug]Job pod created, waiting for it to come online linux-x86-64-nx2ns-runner-5ln6x-workflow
Sat, 24 Jan 2026 19:32:24 GMT ##[debug]Job pod is ready for traffic

Looks good! Same ~3s performance on workflow pod startup.

Reading the manifest on the newly running workflow pod we can see what getPodAffinity(nodeName) contributed to the spec:

affinity:
  nodeAffinity:
    requiredDuringSchedulingIgnoredDuringExecution:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - hephaestus.homelab

Which looks compatible with the OpenEBS constraint we showed earlier:

allowedTopologies:
- matchLabelExpressions:
  - key: kubernetes.io/hostname
    values:
      - hephaestus.homelab

Both are now using kubernetes.io/hostname: hephaestus.homelab and with the same scheduler.

Are We There Yet?

Running on the default runner image with a clean working values.yaml for our RunnerScaleSet, and a clean hook extension connecting our conan-home ZFS clone. Awesome.

One more thing...

While troubleshooting this issue we found that the default k8s hook is old (v0.7.0). It's not clear why the newer hook release (v0.8.0) has a new name (k8s-novolume) and does not(?) appear to be the default version at this point.

Let try "just one more" experiment to try the k8s-novolume hook and see how well it works with our conan-home OpenEBS PVC. It may be feasible to switch directly to v0.8.0 if it handles our data volumes better than v0.7.0 does.

Experiment 4: GitHub ARC containerMode: k8s-novolume

For this test we only had to modify our RunnerScaleSet values.yaml.

  containerMode:
-   type: "kubernetes"
+   type: "kubernetes-novolume"

  [...]

  template:
    spec:
      containers:
      - name: runner
        env:
          - name: ACTIONS_RUNNER_CONTAINER_HOOKS
-           value: /home/runner/k8s/index.js
+           value: /home/runner/k8s-novolume/index.js

It appears that v0.8.0 of the k8s hook has removed all of the node affinity requirements and implementation. Rather than relying on volumes shared between the runner pod and the workflow pod, the updated k8s hook will copy files around the cluster as necessary.

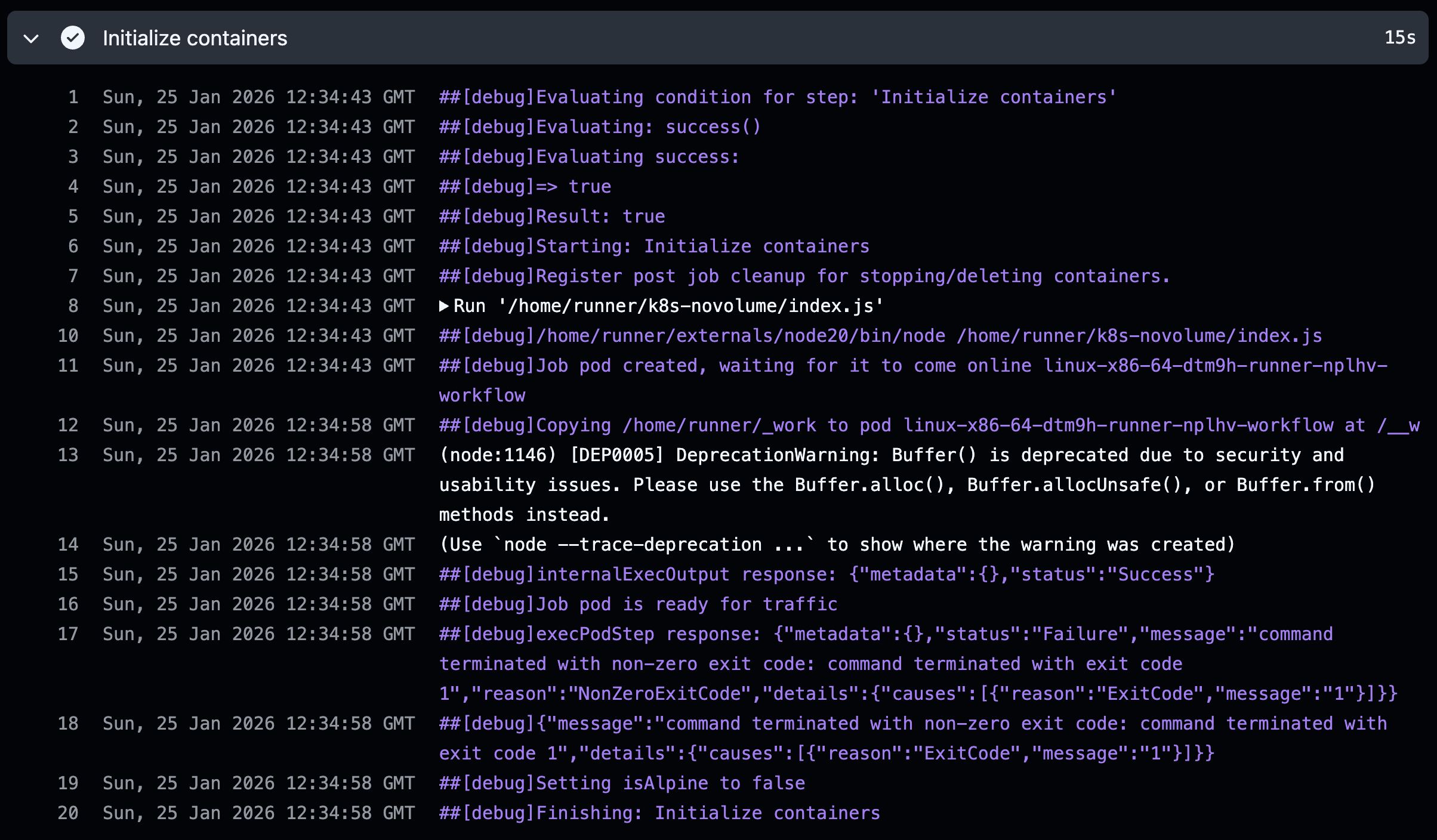

The unfortunate downside of this is that it slows down our workflow container initialization significantly. We've traded the node affinity issue for a data transfer issue.

Mon, 26 Jan 2026 16:57:34 GMT ##[debug]Job pod created, waiting for it to come online linux-x86-64-dtm9h-runner-jqjvt-workflow
Mon, 26 Jan 2026 16:57:49 GMT ##[debug]Job pod is ready for traffic

It's only 15s in this case, but some basic debugging has shown this delay appears to be in the initContainers moving data around at runtime rather than more Kubernetes scheduling issues.

We will table this until a future point when we're ready to look at optimization of the externals and other data transfers that the runner applies to the workflow job container.

While we are well-equipped to continue tackling performance issues like this, we need to move on. The default version we're using (v0.7.0) is working very well and is apparently stable given that it's no longer maintained. v0.7.0 also seems like a closer fit to our use case since it requires the same sort of node affinity for data volumes. We won't escape without any tech debt at all..

What's Next

We need to continue testing and optimizing this solution before we can go to production with it. Functionality is proven to be working and correct, and the single major performance issue we found is now resolved. There are still many things we need to look at regarding security, performance, and ease-of-use.

For our next steps, we'll continue looking at performance optimization and security hardening. We'll also need to circle back on saving broken builds and promoting our updated cache on successful build.

References

• GitHub Actions - Enable debug logging
• GitHub Actions - Runner container image
• OpenEBS - Local PV ZFS - Configuration
