Demo - MultiPhase Toolchain Build#

We use our tools to build our tools. But we need to get started on a new platform by building our basic compiler suite.

Using caching in GitHub Actions, we can connect multiple toolchain workflows to each other, so that dependencies built in one phase can be installed for use in subsequent phases.

Phase 1 - GNU binutils#

GCC depends on binutils, so that's where we start. We need a working compiler to build our tools though, so we'll use a special bootstrap container image with the OS Vendor's compiler chain installed.

phase 1 - conanfile.py

    # For this bootstrapping phase we'll depend on OS vendor-provided tools
    def system_requirements(self):
        Apt(self).install(["make", "cmake", "binutils", "gcc"])
        Yum(self).install(["make", "cmake", "binutils", "gcc"])

    def requirements(self):
        self.requires("binutils/2.42")

Phase 2 - bootstrapping CMake, GNU Make, and GCC#

In Phase 2, we'll build our GCC configured to use our binutils package from Phase 1. We're still depending on the system GCC however, so we still want the OS Vendor's binutils available for their GCC as well.

phase 2 - conanfile.py

    # For this bootstrapping phase we'll depend on OS vendor-provided tools
    def system_requirements(self):
        Apt(self).install(["make", "cmake", "binutils", "gcc",
                           "opt+toolchain-binutils_2.42-0",
                          ])
        Yum(self).install(["make", "cmake", "binutils", "gcc",
                           "opt_toolchain-binutils-2.42-0",
                          ])

    def requirements(self):
        self.requires("make/4.4.1")
        self.requires("cmake/4.0.1")
        self.requires("gcc/12.2.0"

Phase 3 - Clean rebuilds using our toolchain#

Finally, we will go back to our OS-minimal container image, install the tools we built in the previous phases, and rebuild all of our tools.

By using the OS-minimal image this time, we can be certain that there will be no surprise dependencies on the original OS Vendor toolchain.

We only upload these final builds to Artifact Management, along with a brand new Conan Build container image for building all other tools we support. The previous packages built with our bootstrap image are discarded.

phase 3 - conanfile.py

    # Finally, we use our tools from phase 1 and 2 to build our tools again
    def system_requirements(self):
        Apt(self).install(["opt+toolchain-make-4.4.1-0",
                           "opt+toolchain-cmake-4.0.1-0",
                           "opt+toolchain-gcc-12.2.0-0",
                           "opt+toolchain-binutils_2.42-0",
                          ])
        Yum(self).install(["opt_toolchain-make-4.4.1-0",
                           "opt_toolchain-cmake-4.0.1-0",
                           "opt_toolchain-gcc-12.2.0-0",
                           "opt_toolchain-binutils-2.42-0",
                          ])

    def requirements(self):
        self.requires("make/4.4.1")
        self.requires("cmake/4.0.1")
        self.requires("binutils/2.42")
        self.requires("gcc/12.2.0"

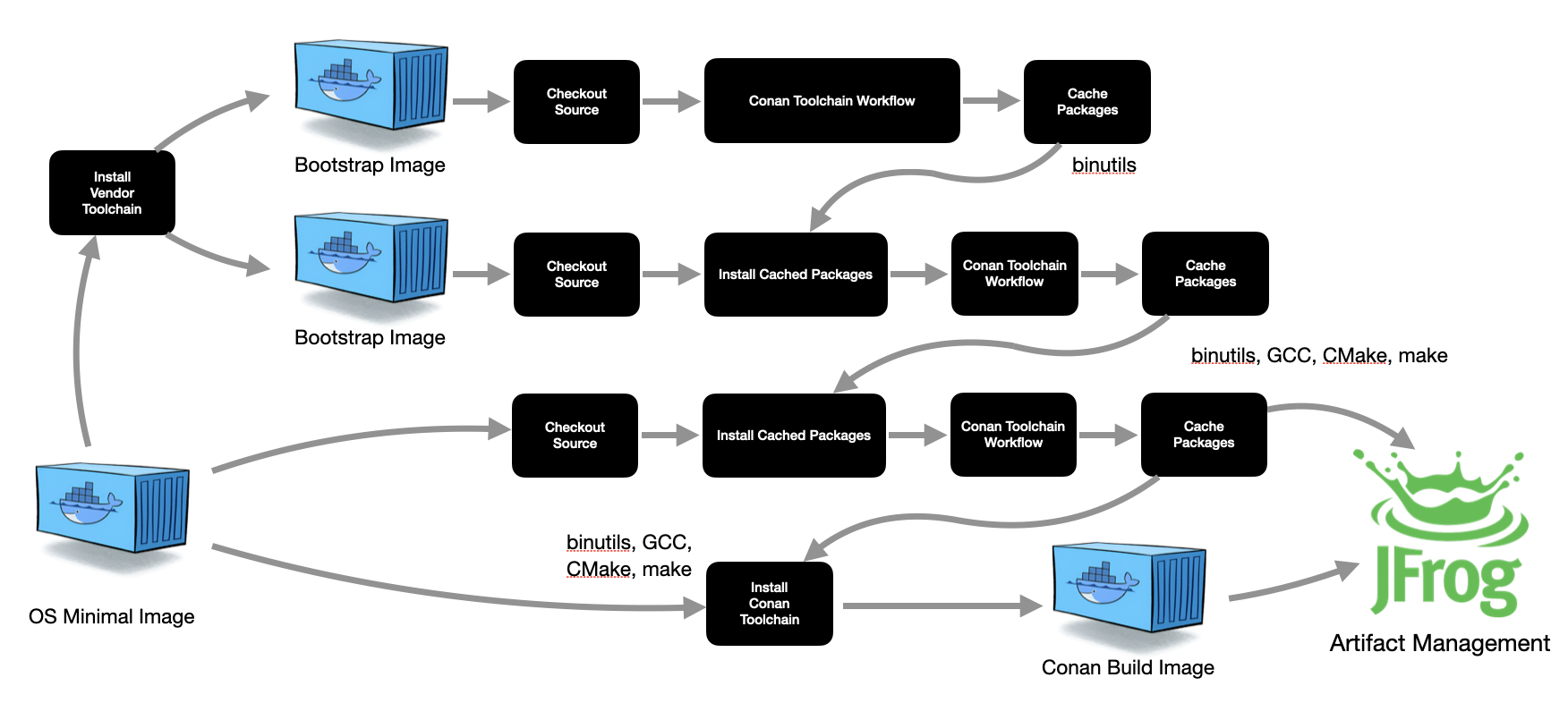

For each platform, we end up with an overall flow that looks like this
