Demo - Optimizing C/C++ Build Performance using Conan and OpenZFS#

Introduction#

In this demo we'll show how to use Conan for build-avoidance along with OpenZFS for build-caching. This solution can provide the highest level of build optimization for very, very large C/C++ projects. Multi-million LoC and the like.

We'll use Conan for build avoidance with pre-built binary packages and local caching with artifact management as our backing store. We'll employ OpenZFS to snapshot and clone our Conan Cache to minimize time to seed the cache for future builds. OpenZFS will also optimize storage utilization across multiple build workspaces, such as massively-parallel CI builds.

A Question of Scale#

For smaller projects this solution probably carries a prohibitive amount of storage maintenance. This solution shines in environments where artifact management service is not local to the build servers, or where downloading 50GB or 500GB worth of build artifacts is not practical for every CI build or developer workspace.

With this solution we are able to optimize our utilization of CPU, storage space, and network bandwidth all in one shot. Not only are we saving the time to drag package artifacts across our network, we're also saving duplicated storage on the build side when the same package versions are used across multiple SCM workspaces and branches.

When we're supporting multiple compiler configurations (such as optimized, debug, coverage, and the various sanitizer options) across multiple branches, the storage space required for very large projects can be quite significant.

The cost of this solution is in storage architecture. In order to maximize the value we'll need to design our storage infrastructure specifically around this solution. We'll either need to centralize all CI and developer workspaces onto the same storage cluster, or set aside local storage on each build host specifically for build cache use. Or some structured compromise in between..

Sharing this cache across multiple users is certainly practical and can be very effective with this solution. It brings its own complications such such as file ownership however. Supporting multiple users is beyond the scope of this demo.

Conan#

Conan, the C/C++ Package Manager provides us with the most sophisticated build caching technology available, with features such as:

  • Component package versioning.
  • Binary package support using hashed platform and compiler configurations.
  • Local package cache that allows packages to be shared across multiple CI or developer workspaces (with limitations!).
  • Native artifact management support in both JFrog Artifactory and Sonatype Nexus, with GitLab support in-progress.
  • Build system agnostic, with many integrations including CMake, Bazel, GNU Autotools/Make, and many more.

With these features Conan provides a very strong build-avoidance solution at a component level, not just individual objects/targets. With the build system integration, object build-avoidance technologies can still be integrated as well. That's beyond the scope of this demo however.

Using versioned packages still leaves a lot of room for optimization. Downloading pre-built binary packages requires significant network I/O, and only partially helps manage storage use in supporting multiple developer or CI workspaces. One fundamental limitation of Conan's package cache is that it does not support concurrency. Given enough developer workspaces or CI builds trying to share a local Conan cache, we will run into race conditions eventually, resulting in a corrupted cache.

OpenZFS#

OpenZFS or other copy-on-write filesystems that support clone functionality provide a reliable, high performance solution to these Conan limitations. Use of filesystem clones allows multiple CI jobs to operate concurrently with safety. Each parallel runner/job can own its own clone without duplicating storage. Further, developers may even clone from last-night's CI builds as long as they're operating within the same filesystem (or storage cluster).

Proven#

The original inspiration for this solution comes from NetApp, where I was part of their SCM team supporting ONTAP developer builds in Perforce. For our very large source code trees with their resulting large C/C++ builds, we leveraged NetApp's own thin-provisioned FlexClone technology. This enabled us to construct developer workspaces pre-seeded with the latest nightly CI build virtually instantaneously.

NetApp and Perforce have published their Perforce implementation of this solution:

This solution provided a very significant developer productivity gain, in most cases. Developers no longer needed to do an initial ONTAP build in their workspaces. They could simply clone last-night's CI build workspace, sync their client to pick up today's changes, and then perform an incremental build from there.

Reliability was not perfect however, and broken builds could result in the developer having to do a clean full build to get back on track.

Conan improves reliability and error-recovery significantly. If the Conan cache is corrupted somehow, rebuilding the cache is as simple as creating a new cache clone. Or worst-case, re-populate the cache from artifact management. Incremental builds become incremental downloads instead. Additionally, Conan separates the cache storage from the developer workspace. The impact of any cache issue is isolated from the SCM workspace, and vice-versa.

Environment and Initial Setup#

Hardware#

  • Server - 8945HS/64GB/SSD
  • Workstation - 9900X/32GB/SSD
  • Notebook - Macbook Pro M4 Pro
  • Network - Ubiquiti UniFi 2.5Gb/s Switch

Software#

OpenZFS Setup#

For this example, we've got 200GB of storage on our NVMe drive unallocated, so we'll give it to ZFS and set up a pool to use it. We don't care about tracking file access time in our Conan cache, so we want to make sure we turn that off to improve performance.

Creating the ZFS Pool
zpool create zpool-conancache /dev/nvme0n1p7
zfs set atime=off zpool-conancache

In order to delegate management of this pool for this demo, we'll simply grant sudo access for our CI user github-runner to run /usr/sbin/zfs.

/etc/sudoers entry
github-runner    ALL=NOPASSWD: /usr/sbin/zfs

Warning

Sudo is absolutely not a recommended solution for production use, but works fine for this single-user demo. For some alternative suggestions, see the discussion below: sudo vs. zfs allow vs. SSH command key

Conan Center Index#

For use throughout my ConanToolchain project, I've been maintaining a fork of the Conan Center Index recipe repo.

conan-center-index

Conan Center Index is the source index of recipes of the ConanCenter package repository for Conan.

In this fork I've modified the recipes to download source bundles from GNU mirrors rather than the primary GNU FTP site, and in some cases commit the source bundle into the fork to avoid repeated downloads hammering GNU's mirror sites.

GitHub Actions Workflow#

For this demo I've implemented a simple GitHub Actions Workflow ConanZFSDemo.yml to manage ZFS, leveraging my existing reusable ConanToolchain workflow conan-toolchain.yml to assemble a project with enough components to be interesting. The Conan Center Index provided all of the components used here (with some minor modifications).

The ConanZFSDemo.yml workflow mixes a combination of shell jobs directly on the runner host to manipulate ZFS, and a Docker job to run the conan-toolchain.yml workflow leveraging the ZFS cache.

Create snapshot and clone for our new build cache#

The first workflow job creates a new temporary snapshot and clone for our new build cache.

zfs snapshot "${ZFS_BUILD_SNAPSHOT}"
zfs clone "${ZFS_BUILD_SNAPSHOT}" "${ZFS_BUILD_CLONE}

Our snapshot naming looks like:

  • ${ZPOOL_NAME}/${PROJECT}/${GITHUB_REF_NAME}@${JOB_HOST}-pre${GITHUB_RUN_ID}

Example: zpool-conancache/gcc12-toolchain/main@hephaestus-pre18171656687

We give our snapshot a prefix pre because the snapshot is readonly, and we don't really know when or how the original cache state was established. We only know that this was the state prior to this build workflow.

Our clone naming represents the cache state throughout this build:

  • ${ZPOOL_NAME}/${PROJECT}/${GITHUB_REF_NAME}_${JOB_HOST}-${GITHUB_RUN_ID}

Example: zpool-conancache/gcc12-toolchain/main_hephaestus-18171656687

Example ZFS status with CI snapshots and clones provisioned
$ zfs list -r -o name,used,avail,refer
NAME                                                           USED  AVAIL  REFER
zpool-conancache                                              7.97G   183G    24K
zpool-conancache/gcc12-toolchain                              7.96G   183G    25K
zpool-conancache/gcc12-toolchain/main                         7.96G   183G  7.96G
zpool-conancache/gcc12-toolchain/main_hephaestus-18171656687     1K   183G  7.96G
$

$ zfs list -t snapshot -o name,used,refer
NAME                                                              USED  REFER
zpool-conancache/gcc12-toolchain/main@hephaestus-pre18171656687     0B  7.96G
$

Running the build#

Running our build is the same as any other Conan project. We're just connecting a special cache directory and making sure our CONAN_HOME environment is pointed at it.

For our CI workflow we reuse the conan-toolchain.yml workflow, but in a shell script it looks something like this:

Containerized Build Startup
DOCKER_IMAGE="nexus.homelab/conan-docker-build-ubuntu:x86_64-latest"
docker run -it --rm \
    --volume="/${BUILD_CLONE}:${CONTAINER_CONAN_HOME}" \
    --volume="${SERVER_WORKSPACE_ROOT}:${CONTAINER_WORKSPACE_ROOT}" \
    --env="CONAN_HOME=${CONTAINER_CONAN_HOME}" \
    --env="INSTALL_PREFIX=${INSTALL_PREFIX}" \
    --env="CONTAINER_WORKSPACE_ROOT=${CONTAINER_WORKSPACE_ROOT}" \
    --env="COMPONENT_SUBDIR=${CONTAINER_WORKSPACE_ROOT}/${WORKSPACE_SUBDIR}" \
    "${DOCKER_IMAGE}" \
    "${CONTAINER_WORKSPACE_ROOT}/${CONAN_BUILD_SCRIPT}"

# Detect build failures
retval=$?
Conan Build Script
conan profile detect
conan config install https://github.com/DaverSomethingSomethingOrg/conan-system-packaging.git

conan remote add -t local-recipes-index conan-local-recipes "${CONTAINER_WORKSPACE_ROOT}/conan-center-index"
conan remote update conan-local-recipes --index 0

conan remote add conan-local-repo https://nexus.homelab/repository/conan-homelab
conan remote update conan-local-repo --index 0

conan install --build=missing \
              --options="*:install_prefix=${INSTALL_PREFIX}" \
              "${COMPONENT_SUBDIR}"

Promote the Successful Build's clone#

In order to make sure we don't lose data, we'll follow the typical process of renaming the old dataset clone in-place before renaming the new clone to the old name. Only then can we destroy the original (now legacy) clone and snapshot.

zfs promote "${ZFS_BUILD_CLONE}"
zfs rename "${ZFS_BRANCH_DATASET}" "${ZFS_BRANCH_DATASET}-legacy"
zfs rename "${ZFS_BUILD_CLONE}" "${ZFS_BRANCH_DATASET}"
zfs destroy "${ZFS_BRANCH_DATASET}-legacy"
zfs destroy "${ZFS_BUILD_SNAPSHOT}

Save or Destroy a Failed Build's clone#

If our build is configured to save failed builds, we simply do nothing. We can leave the new snapshot and clone created for our build just as they are, and this ensures all access paths remain the same for troubleshooting as well.

Future builds will snapshot/clone against the original branch dataset just as our current build did.

zfs destroy "${ZFS_BUILD_CLONE}"
zfs destroy "${ZFS_BUILD_SNAPSHOT}

Updated cache state#

Following a promoted successful build or destroyed failed build, our cache state returns to its initial ready state for the branch. No snapshots, and only a dataset representing a the latest good cache for the branch we're working on.

Example ZFS status with CI snapshots and clones provisioned
$ zfs list -r -o name,used,avail,refer
NAME                                                           USED  AVAIL  REFER
zpool-conancache                       8.62G   182G    24K
zpool-conancache/gcc12-toolchain       8.61G   182G    25K
zpool-conancache/gcc12-toolchain/main  8.61G   182G  8.61G
$

$ zfs list -t snapshot -o name,used,refer
no datasets available
$

Performance comparisons#

As mentioned previously, my test environment is hardly representative of real-world scenarios this solution would be used for. Showing these results at least helps frame the amount of computation and resource utilization for each type of operation.

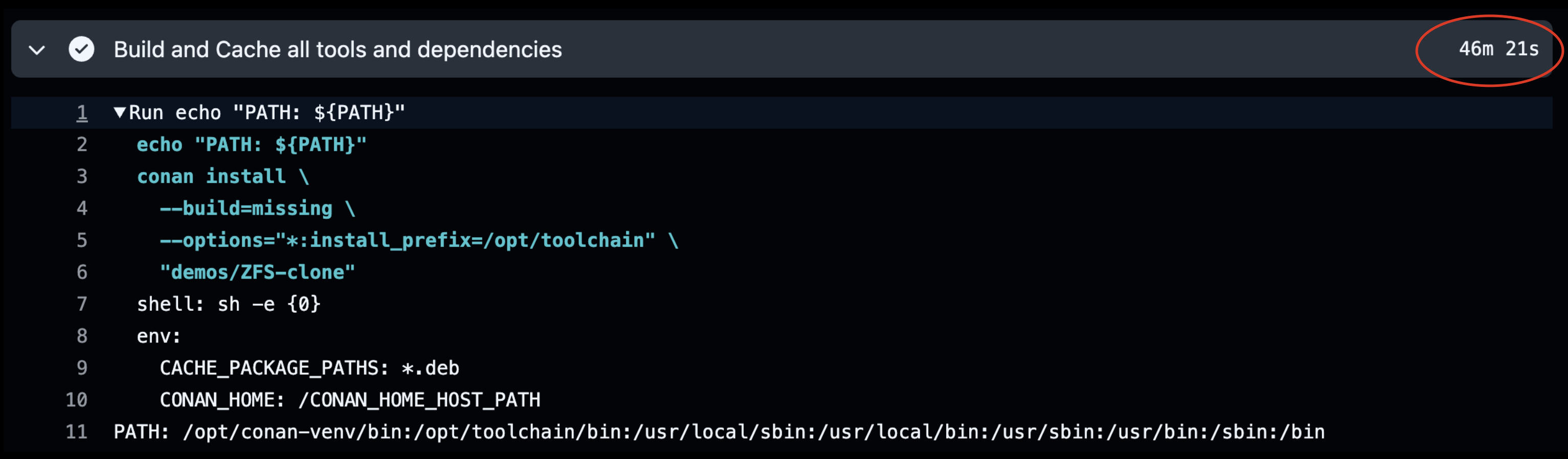

Empty cache, clean build without Artifact Management available

Full Build without Artifact Management or seeded cache

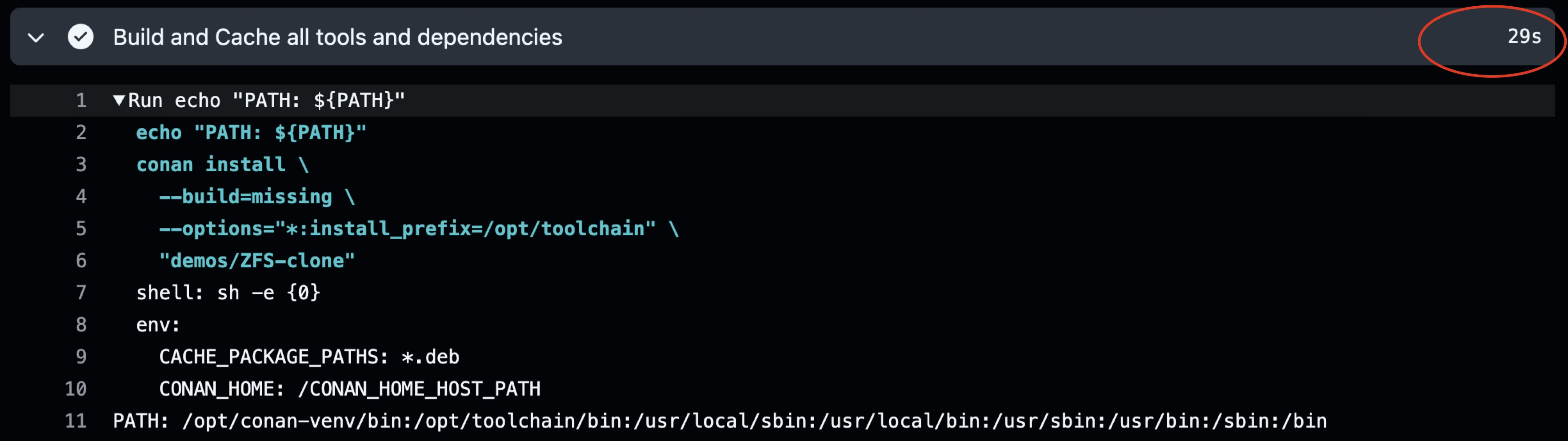

Empty cache, clean build with full download from Artifact Management

Full Download from Artifact Management

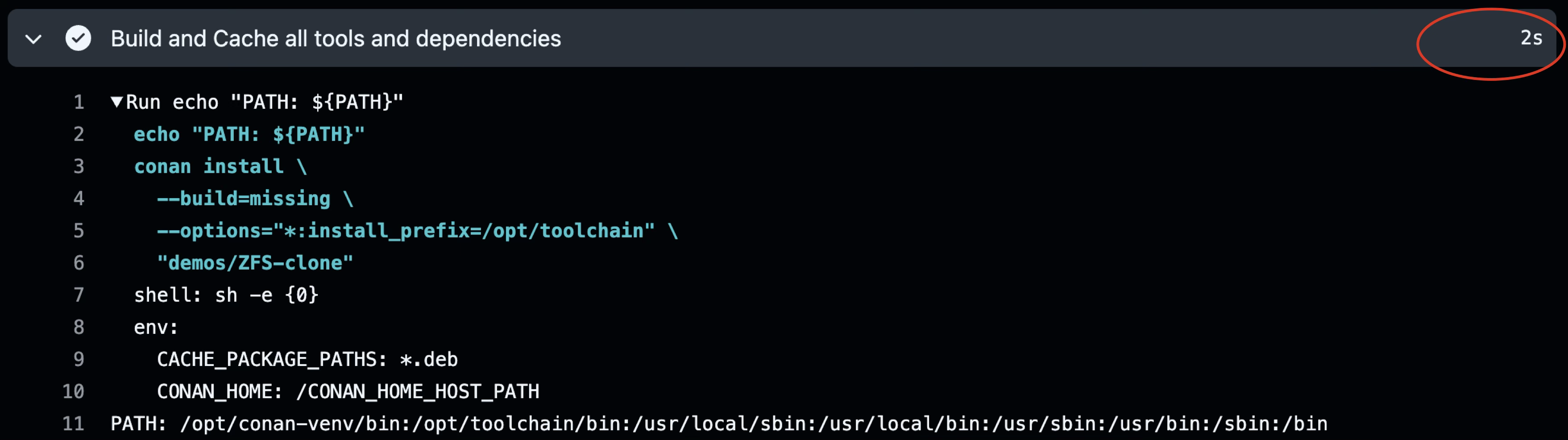

Fully seeded cache, clean build

Fully seeded cache

Snapshot and Clone Provisioning Overhead#

To be completely fair, we do need to factor in the time it takes to create the ZFS snapshot and clone for our 8.61GB dataset.

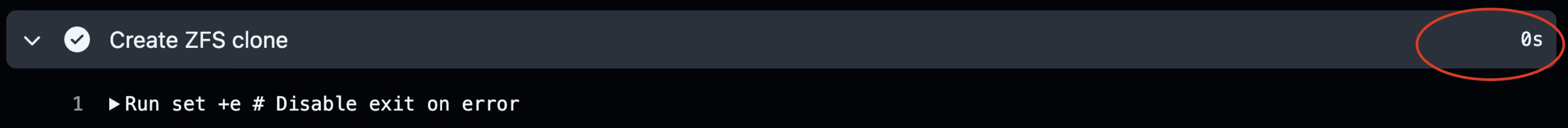

Snapshot and Clone Provisioning time

ZFS Clone Provisioning

Since it's is hard to get a precise timing on this operation in CI, here's the same operation from our interactive shell:

❯ time zfs snapshot zpool-conancache/gcc12-toolchain/main@hephaestus-pre18171656687; \
  time zfs clone zpool-conancache/gcc12-toolchain/main@hephaestus-pre18171656687 \
                 zpool-conancache/gcc12-toolchain/main_hephaestus-18171656687

zfs snapshot   0.00s user 0.01s system 37% cpu 0.021 total
zfs clone      0.00s user 0.00s system 21% cpu 0.027 total
❯

Special Note

An important consideration here is that both "clean build" and "full download" timings will scale linearly with the size of the project.

ZFS snapshot/clone timing should be constant, depending more on the storage speed and kernel load instead of project size.

Limitations and Issues#

Linking and Deployment performance is not optimized#

While this represents the ultimate compile-avoidance solution, other phases of the "build" remain unaffected. If our application is statically linked, bundled into an "image", or even repackaged for deployment, we'll need to optimize those steps separately.

Conan itself does support "vendoring" of dependencies, and this could be very useful in building "sub-assemblies" or "subsystem" component packages. This is very effective when development is highly focused on a few specific components in our product. The rest of the components may be packaged together (such as archiving static libraries together) to simplify the dependency graph and reduce random-access I/O at linking time.

Optimizing the full deployment process for our application will be very specific to the system architecture and infrastructure.

sudo vs. zfs allow vs. SSH command key#

For the sake of expediency in this demo we used sudo to enable our automation user to manipulate ZFS snapshots and clones. In the real world, with multiple users and different use cases we would want a solution with stronger security.

The zfs allow command looks like it should enable this functionality, but on Linux the mount (and zfs mount) cannot be delegated so easily for our use case. We can delegate creation of our dataset snapshots and clones directly, but if we cannot mount/umount them, we can't use them!

An approach I'd recommended would be to call zfs from behind an SSH command key. With SSH we can implement a server-side script run by a special automation user account. We would only need to grant that one account delegated ZFS permissions, and the script could validate the authorization for the command being run against our rules for maintaining the filesystem.

Rob Napier at Cisco wrote this excellent and concise whitepaper on implementing such solutions for the USENIX LISA Conference. It's worth a read!

What's Next#

For our next demo we'll implement a similar solution for use in our Kubernetes cluster. Kubernetes brings some significant benefits for security and delegated storage management, but also introduces some new limitations and challenges to overcome.

Check it out here.
