Demo - Optimizing the Inner Loop with Conan and ZFS in Remote DevContainers#

Introduction#

We've demonstrated the benefits of Conan build avoidance with OpenZFS for cloning our Conan Toolchain build cache in our previous demo. Now how do we extend that benefit to enhance our Developer Experience as well?

Works on my machine

The answer is remote DevContainers hosted in Kubernetes!

In addition to build performance and storage optimization, remote DevContainers will also help secure endpoints by keeping our source code and builds hosted in our datacenter!

We'll get the benefit of being able to set up our runtime environment more similar to how we deploy production too. Using the same container images that our CI workflows use, with all of the same dependencies deployed in the same manner.

"Works on my machine" is really starting to mean something now!

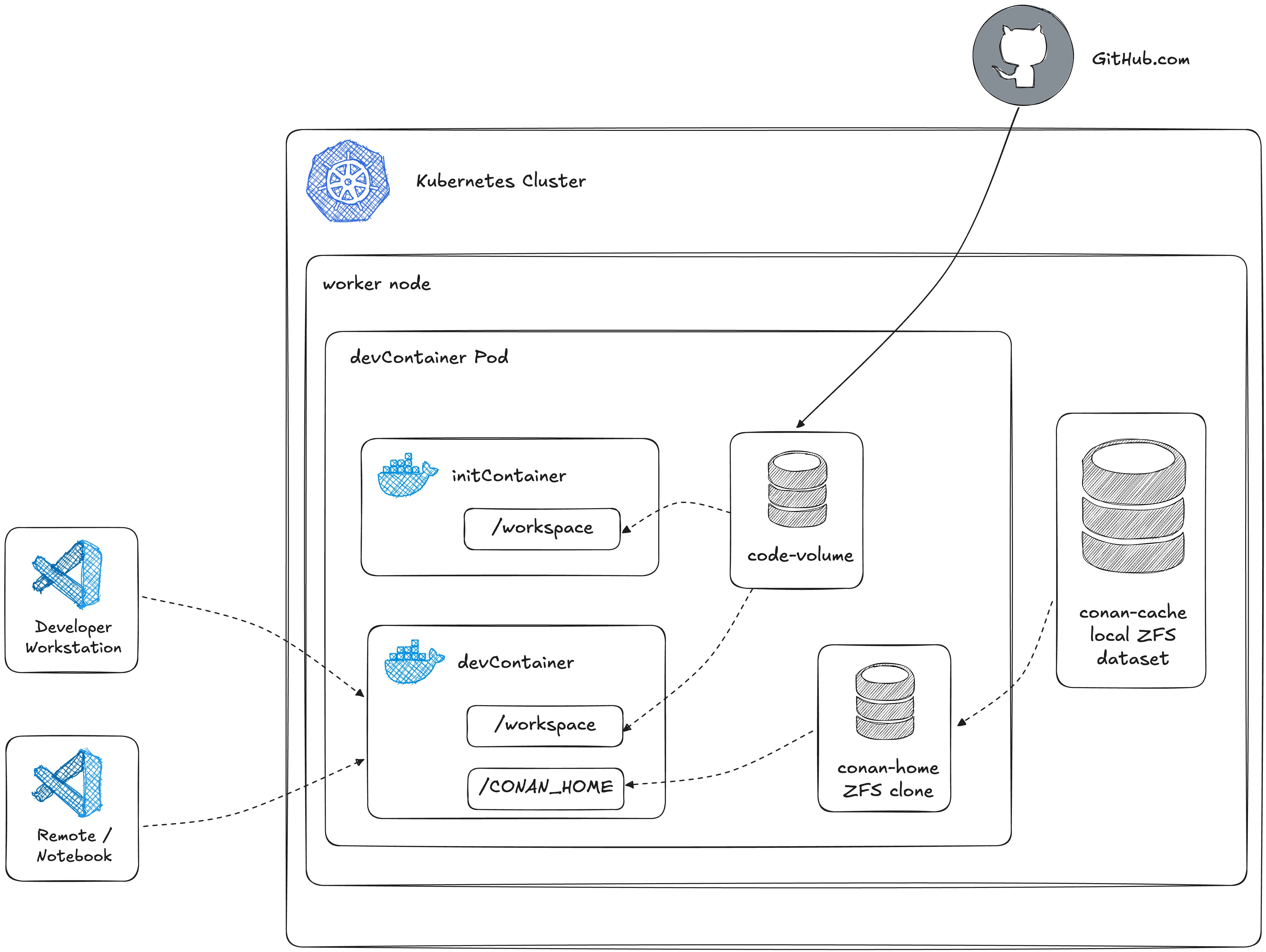

Conan and ZFS in Remote DevContainers box diagram

Thanks to Excalidraw for their nifty diagramming tool.

Inspiration#

This was originally inspired by an article from vxlabs where they set up Kubernetes on their development machine in order to gain remote access to their shared VS Code development environment.

vxlabs - Using Kubernetes for development containers

Botha, Dr. Charl P., vxlabs (2021). "Using Kubernetes for development containers"

Diagram - Using Kubernetes for development containers

More: https://vxlabs.com/2021/11/21/using-kubernetes-for-development-containers

It turns out that VS Code can do most of the work once we have a container Pod deployed in Kubernetes and the required VS Code plugins installed.

We're going to take this a bit further here and assume all access is remote for an Enterprise-ready implementation. We'll leverage our centralized Kubernetes cluster for all development in order to take full advantage of our centrally managed, scalable ZFS storage there as well.

There are a few free/open-source and commercial/SaaS tool offerings in this space, some of which provide significant value over the solution we're presenting here.

None of these other tools directly address the use case we're showing here; leveraging our copy-on-write filesystem to rapidly clone a large build cache. So that part is what we'll focus on in this demo.

We'll set up and detail the configuration for the plumbing required to utilize DevContainer technology in bare-bones form, connecting it to our ZFS Conan Cache clones. We want our developers to benefit from our ZFS-optimized builds just as much as our CI workflows do!

By standardizing on OpenEBS for our backend storage management, it should be pretty straightforward to leverage ZFS in those 3rdParty solutions as well.

Environment#

Hardware#

We'll be using the same lan and hardware setup as our previous demos.

  • Server - 8945HS/64GB/SSD
  • Workstation - 9900X/32GB/SSD
  • Notebook - Macbook Pro M4 Pro
  • Network - Ubiquiti UniFi 2.5Gb/s Switch

Software#

OpenEBS ZFS Setup#

Installing OpenEBS#

Reference: OpenEBS Installation

❯ helm repo add openebs https://openebs.github.io/openebs
❯ helm repo update

❯ helm install openebs \
  --namespace openebs openebs/openebs \
  --set engines.replicated.mayastor.enabled=false \
  --set zfs-localpv.zfsNode.kubeletDir=/var/lib/kubelet \
  --create-namespace

NAME: openebs
LAST DEPLOYED: Wed Oct 15 08:23:30 2025
NAMESPACE: openebs
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Successfully installed OpenEBS.

Check the status by running: kubectl get pods -n openebs

The default values will install both Local PV and Replicated PV. However,
the Replicated PV will require additional configuration to be fuctional.
The Local PV offers non-replicated local storage using 3 different storage
backends i.e Hostpath, LVM and ZFS, while the Replicated PV provides one replicated highly-available
storage backend i.e Mayastor.

For more information,
- view the online documentation at https://openebs.io/docs
- connect with an active community on our Kubernetes slack channel.
        - Sign up to Kubernetes slack: https://slack.k8s.io
        - #openebs channel: https://kubernetes.slack.com/messages/openebs
❯

OpenEBS StorageClass definitions#

Now that OpenEBS is installed with Local PV ZFS, we'll create our PV and snapshot StorageClass definitions. We'll need to give the PV StorageClass the name of our toplevel ZFS pool/dataset, and it's a good idea to specify our worker node in here as well as these are Local PVs.

Reference: OpenEBS Local PV ZFS - Create StorageClass(s)

OpenEBS StorageClass definitions
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: openebs-zfspv
allowVolumeExpansion: true
parameters:
  recordsize: "128k"
  compression: "off"
  dedup: "off"
  fstype: "zfs"
  poolname: "zpool-conancache"
provisioner: zfs.csi.openebs.io
allowedTopologies:
- matchLabelExpressions:
  - key: kubernetes.io/hostname
    values:
      - hephaestus.homelab

---

kind: VolumeSnapshotClass
apiVersion: snapshot.storage.k8s.io/v1
metadata:
  name: openebs-zfspv-snapshot
  annotations:
    snapshot.storage.kubernetes.io/is-default-class: "true"
driver: zfs.csi.openebs.io
deletionPolicy: Retain

Kubernetes Namespace#

When creating ZFS PV/PVCs, they all need to exist in the same namespace and all need to request the same size storage resource, or things will mysteriously not work at all.

For this demo we'll create a devcontainer namespace like vxlabs.

Initial Parent/Toplevel DataSet#

We're using the same zpool-conancache ZFS pool from our previous demo, but we want to create a new toplevel dataset to clone from for our Runners and DevContainers. Primarily to isolate our Kubernetes operations from our raw ZFS operations in our previous demo.

Reference: OpenEBS Local PV ZFS - Create PersistentVolumeClaim

gcc12-toolchain-main_dataset.yaml
# Initial PVC for gcc12-toolchain main branch dataset
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: gcc12-toolchain-main
spec:
  storageClassName: openebs-zfspv
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 200Gi

❯ kubectl apply -f gcc12-toolchain-main_dataset.yaml --namespace devcontainer
persistentvolumeclaim/gcc12-toolchain-main created
❯ kubectl get pvc -n devcontainer
NAME                                           STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS    VOLUMEATTRIBUTESCLASS   AGE
gcc12-toolchain-main                           Bound    pvc-4f9dd102-cf04-44a2-845f-733d77138a6c   200Gi      RWO            openebs-zfspv   <unset>                 13d
❯

DevContainer Pod#

With OpenEBS set up, and ZFS ready to go, we're all set to deploy our DevContainer! We'll create a Pod and attach a PersistentVolumeClaim for our Conan Cache.

Within the Pod we'll run an initContainer in order to clone our git repo into a volume that gets attached to our devContainer once the clone is ready.

In order to avoid file permission issues we'll want to make sure we configure the securityContext to use the same uid/gid that owns the files in the original dataset. Since GitHub Actions run as root/0 by default, we'll continue that here also for convenience.

Warning

Changing to a non-privileged user is an obvious/needed step in securing this solution, but will need to be applied consistently throughout all users of the ZFS dataset.

Reference: OpenEBS Local PV ZFS - Clone

devContainer-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: devcontainer-pod
  labels:
    app: conan
    cache: gcc12-toolchain-main
spec:
  initContainers:
  - name: code-init
    image: "nexus.homelab/conan-docker-build-ubuntu:x86_64-latest"
    securityContext:
      runAsUser: 0
      runAsGroup: 0
      #fsGroup: 2000
    command: ["/bin/sh", "-c", "git clone https://github.com/DaverSomethingSomethingOrg/conan-toolchain-demo.git /workspace/conan-toolchain-demo"]
    volumeMounts:
    - mountPath: /workspace
      name: code-volume

  containers:
  - name: conan-container
    image: "nexus.homelab/conan-docker-build-ubuntu:x86_64-latest"
    imagePullPolicy: IfNotPresent
    securityContext:
      runAsUser: 0
      runAsGroup: 0
      #fsGroup: 2000
    env:
    - name: CONAN_HOME
      value: /CONAN_HOME
    workingDir: /workspace/conan-toolchain-demo
    command: ["/bin/sh", "-c", "while sleep 1000; do :; done"]
    volumeMounts:
    - mountPath: /workspace
      name: code-volume
    - mountPath: /home/vscode/.cache
      name: cache-volume
    - mountPath: /CONAN_HOME
      name: conan-home

  volumes:
  - name: code-volume
    # https://kubernetes.io/docs/concepts/storage/volumes/#emptydir
    emptyDir: {}
  - name: cache-volume
    emptyDir: {}
  - name: conan-home
    persistentVolumeClaim:
      claimName: "gcc12-toolchain-main-hephaestus-devcontainer"

---

# Clone CONAN_HOME directly from PVC (internal snapshot)
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: gcc12-toolchain-main-hephaestus-devcontainer
spec:
  storageClassName: openebs-zfspv
  dataSource:
    name: gcc12-toolchain-main
    kind: PersistentVolumeClaim
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 200Gi

Using the DevContainer#

Provisioning#

❯ kubectl apply -f devContainer-pod.yaml --namespace devcontainer
persistentvolumeclaim/gcc12-toolchain-main created
❯ kubectl get pvc --namespace devcontainer --type all
NAME                                           STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS    VOLUMEATTRIBUTESCLASS   AGE
gcc12-toolchain-main                           Bound    pvc-4f9dd102-cf04-44a2-845f-733d77138a6c   200Gi      RWO            openebs-zfspv   <unset>                 13d
gcc12-toolchain-main-hephaestus-devcontainer   Bound    pvc-005c989b-75e4-485f-9a19-59877deaa3af   200Gi      RWO            openebs-zfspv   <unset>                 11d
❯

We can verify the snapshot/clone linkage in ZFS. The naming is chosen by OpenEBS internally.

❯ zfs list -t all |grep '\(pvc-4f9dd102\|pvc-005c989b\)'
zpool-conancache/pvc-4f9dd102-cf04-44a2-845f-733d77138a6c                                           20.6G   161G  20.6G  legacy
zpool-conancache/pvc-4f9dd102-cf04-44a2-845f-733d77138a6c@pvc-005c989b-75e4-485f-9a19-59877deaa3af     0B      -  20.6G  -
zpool-conancache/pvc-005c989b-75e4-485f-9a19-59877deaa3af                                            496K   161G  20.5G  legacy
❯

Connecting VS Code#

The Pod is running, source repo has been git cloned, and cache volume has been zfs cloned. We're ready to connect our VS Code instance and get to productive!

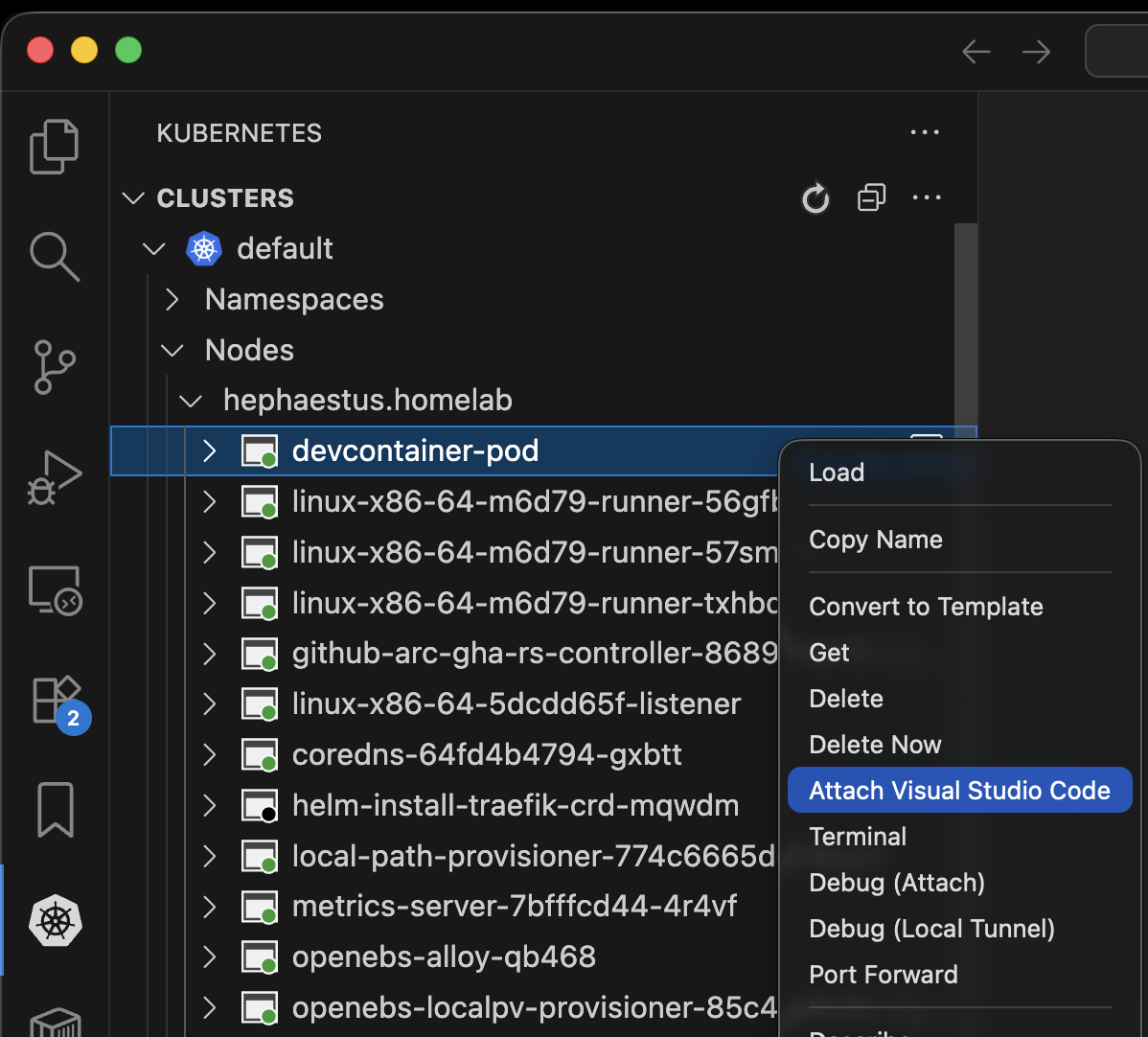

VS Code - attach to DevContainer

Once attached, chose "Open Folder" and navigate to the /workspace/repoName directory where we mounted our code-volume.

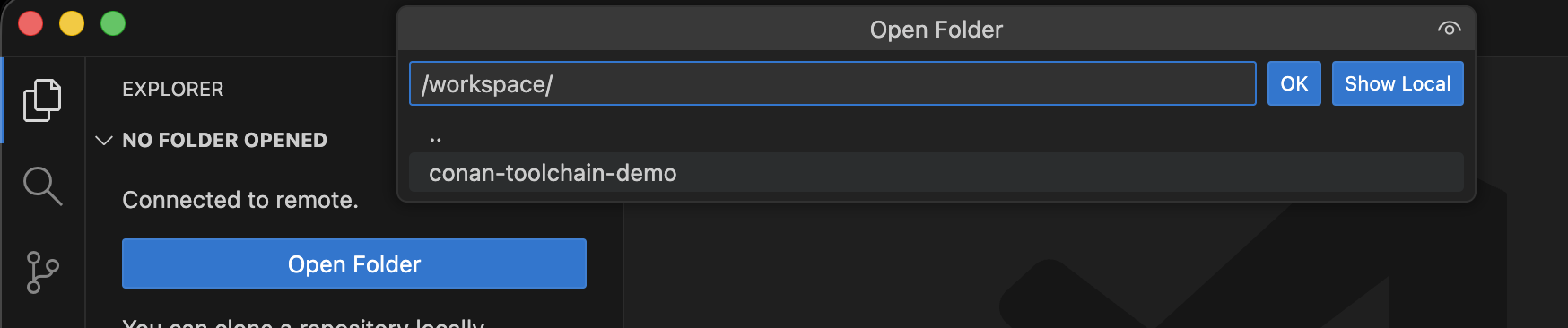

VS Code - open folder in DevContainer

DONE! We have a working Conan dev environment with a pre-populated local cache.

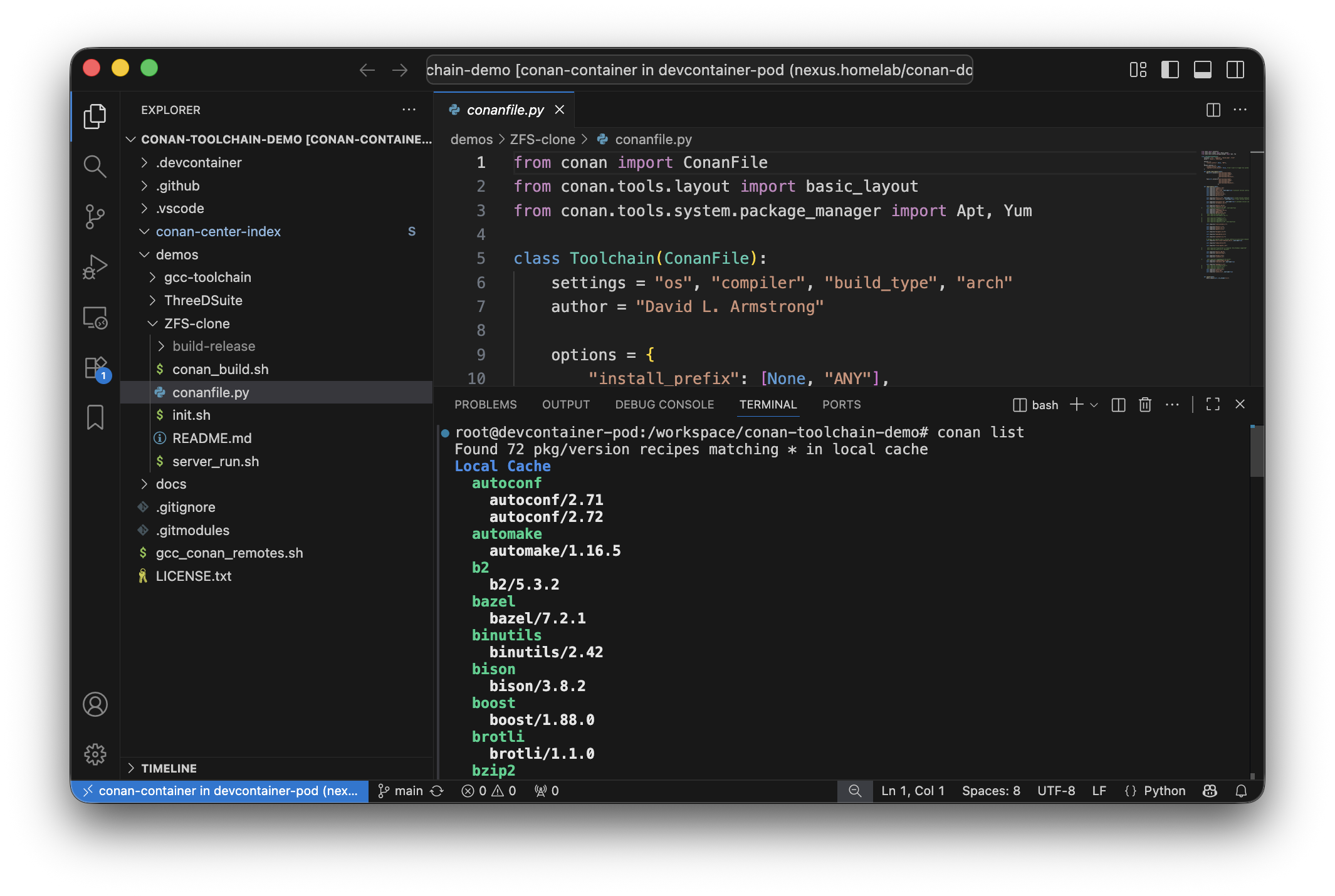

VS Code - attached and ready

Benefits#

No waiting for source clone or initial build#

Remote-managing our developer sandboxes means we can keep a few spare devcontainer pods waiting in a warm-standby pool. Similar to the way we also keep a minimum number of CI runners ready to start jobs with no delay.

When a developer needs a new workspace, we'll just assign one of our standby devcontainer pods to them, switch to their desired branch, and they're off to the races.

No downloading source code to endpoints#

We already take a variety of steps to avoid having developers download our company's intellectual property onto their notebooks and mobile endpoints. Let's make this a positive aspect of their experience rather than a source of friction to getting their job done.

Not only does this solution avoid having our code exposed on a stolen or compromised endpoint, developers won't want to wait for it to download!

Remote development with optimal text input latency and response time#

Remote desktop display and VDI options have always been a sub-optimal developer experience due to high latency in textual input due to transmitting the full graphical environment. This solution keeps the graphics interaction local. Just the text input and output are transmitted while editing code.

Demo Limitations#

We've taken some shortcuts in setting up this demo. Here are some of the areas we'd definitely want to tackle before implementing this solution in a production engineering environment.

Provisioning is not fully optimized#

In order to eek out every bit of performance from a remote DevContainer, we'd want to install vscode-server using our initContainer and have it running and waiting for remote connection prior to the developer attaching to it.

For this demo we rely on VS Code doing the legwork of finalizing the DevContainer setup for us, including downloading and installing vscode-server and Node.js when attaching. This can be very slow if done over a low-bandwidth remote connection. (I've done this from a coffee shop and it's not an enjoyable developer experience!)

Custom Certificate Authority#

The container image we use in our DevContainer is already configured with our custom internal Certificate Authority (CA). For CI jobs, GitHub Actions Runner Controller (ARC) provides custom certificates through a Vault or ConfigMap mounted into the Runner containers. Ideally we would do the same for DevContainers for consistency and to avoid needing a customized container base image.

Security and Resource Quotas#

Yeah, we didn't bother with any of this nonsense (tongue-in-cheek) for this demo, but our GitHub ARC solution (coming up in our next demo!) handles these issues from the CI point of view. We'll want to set up our DevContainers with a compatible security model.

Conclusion#

Modern technologies like Kubernetes and DevContainers bring a lot to the table for bringing the full power of scalable high-performance infrastructure right to the developer's desktop environment without having to sacrifice on developer experience.

In this demo we showed how to leverage our ZFS snapshot and clone functionality for Conan build optimization in the developer's sandbox.

Many engineering organizations are already using NetApp storage and Kubernetes. With some creativity and a few config files and integration scripts we can extract far more value out of the infrastructure we already have, making our developers significantly happier in the process.

What's Next#

For our next demo we'll reimplement our raw ZFS CI solution for Conan build performance using OpenZFS, OpenEBS, and GitHub Actions Runner Controller (ARC).
