Demo - Conan and ZFS and Kubernetes CI (Oh my!)#

Introduction#

Continuing our work with Conan Sandboxes with ZFS and Conan DevContainers with ZFS in Kubernetes, this time we'll explore implementing a CI solution in our Kubernetes environment using GitHub Actions Runner Controller (ARC) with OpenEBS.

We'll skip over most of the boilerplate and default setup and focus on just the special configuration details required for leveraging our ZFS Conan Cache with GitHub Actions in Kubernetes.

Conan and ZFS in GitHub ARC box diagram

Check out Excalidraw and their nifty diagramming tool!

Environment#

Hardware#

We'll be using the same hardware as we did in our previous demos.

  • Server - AMD 8945HS/64GB/SSD
  • Workstation - AMD 9900X/32GB/SSD
  • Notebook - Macbook Pro M4 Pro
  • Network - Ubiquiti UniFi 2.5Gb/s Switch

We've added a few new services onto our server, but at idle we're still using only 10GB of RAM and just a fraction of a single CPU core.

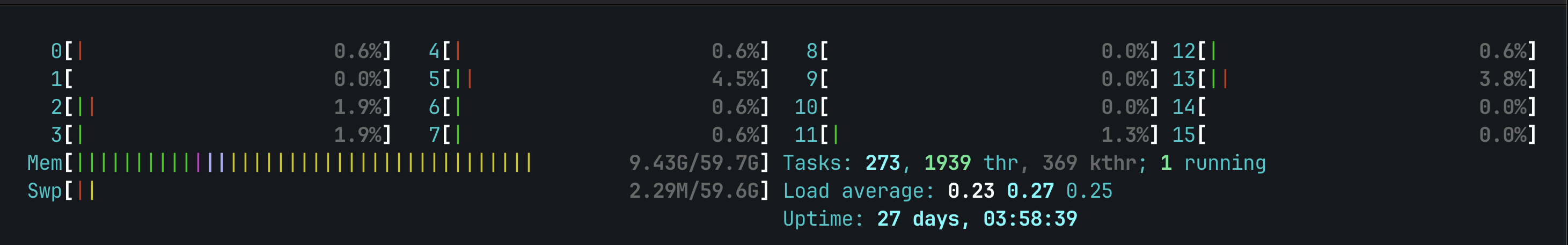

server load screencap

Since we're making heavy use of build avoidance through caching, we're able to use a power-efficient CPU and don't need a very elaborate storage configuration. We are running a significant number of processes however; we'll want to have a flexible number of CPU cores and a good amount of memory to avoid thrashing.

Software#

OpenEBS ZFS Setup#

We'll reuse the ZFS installation from our previous demo as well, including the toplevel dataset we populated with a toolchain build to clone our DevContainers from.

Click here for more information

Warning

OpenEBS does not support advanced ZFS operations such as promote or rename, so we'll need to look at a different approach to replace these parts of the workflow we used outside of Kubernetes. Conan ZFS Demo Workflow

Comparing GitHub ARC Configurations#

GitHub Actions Runner Controller is complicated, and documentation is fairly sparse. It ships with reasonable defaults that make ARC easy to get deployed and working, but customizing its behavior requires a strong understanding of ARC and GitHub Runners in general.

I've included links in the References section below for the most directly applicable documentation I found in setting up this demo.

In order to work with our ZFS Conan cache using GitHub ARC Runners, we first need to look at how GitHub Actions Runners behave when using GitHub ARC. Out of the box, GitHub ARC's RunnerScaleSet includes a containerMode configuration option which probably affects the Runner's behavior more than all other options. On the workflow side, choosing whether to run in a container or not will affect the behavior of this solution the most.

We'll compare different configurations of these two primary variables here.

containerMode: kubernetes with containerized workflows#

This mode has the distinct advantage over all other modes in that it waits until the workflow job starts in order to snapshot and clone our ZFS Conan cache. This ensures that the cache is as up-to-date as it can be, while keeping warm standby Runner processes ready to take on new jobs.

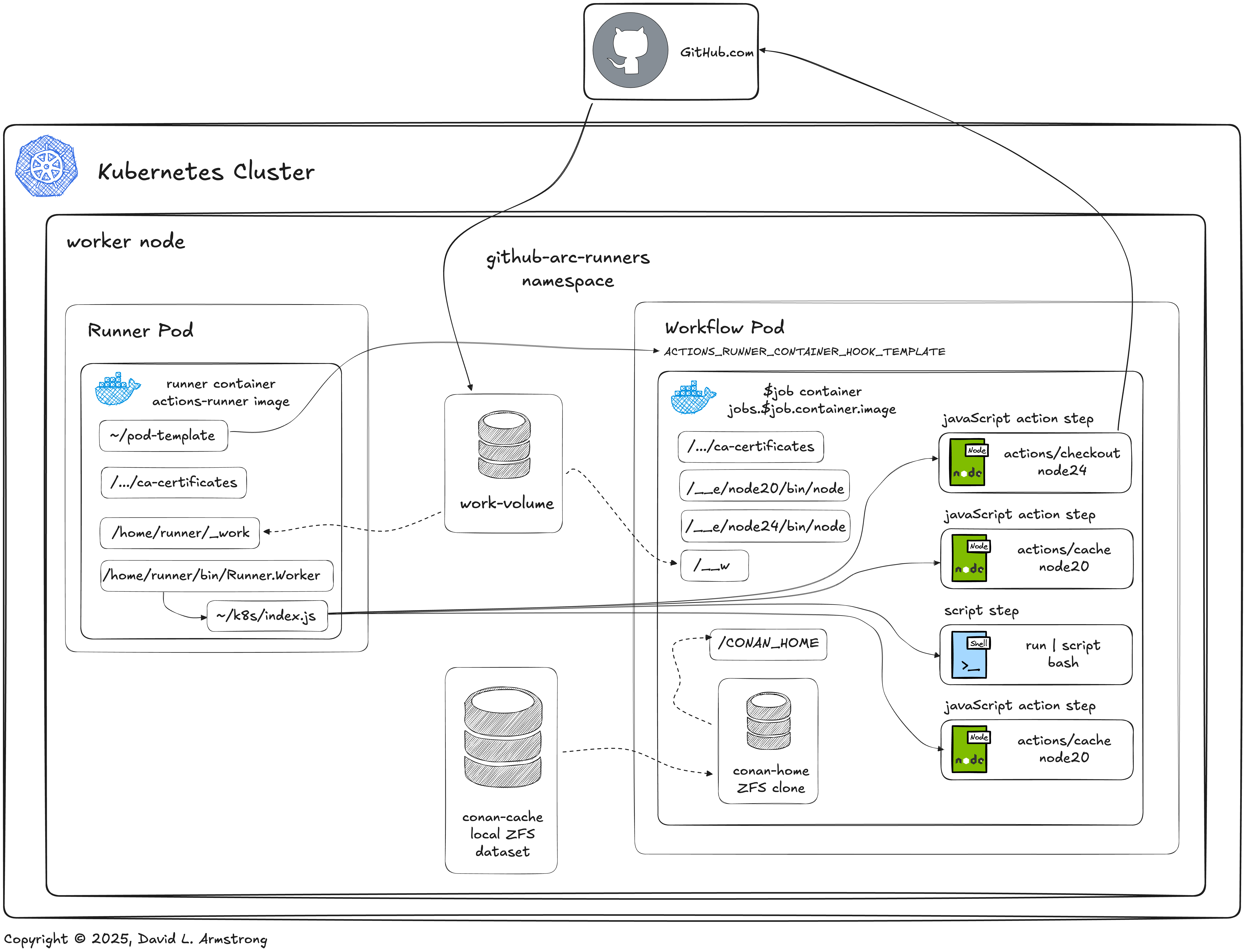

containerMode: kubernetes with containerized workflows

Conan and ZFS in GitHub ARC Containerized Workflow box diagram

Optimizing performance is beyond the scope of this demo, but keeping Runners on stand-by, ready to launch new jobs seems like a reasonable step towards minimizing job startup time.

How it works#

There's a lot going on here, but in a nutshell:

  1. We set the ACTIONS_RUNNER_CONTAINER_HOOKS in the Runner container environment. This will point to a wrapper script that the Runner will use to run our workflow actions and script steps rather than running them directly itself. We'll use the hook package included in the default Runner image: /home/runner/k8s/index.js
  2. ACTIONS_RUNNER_CONTAINER_HOOK_TEMPLATE points the k8s/index.js hook to our workflow pod spec "extension" to connect our ZFS cache PVC to the workflow $job container. We'll use a ConfigMap and volumeMount it for this piece of the puzzle.
  3. At job start time, the k8s/index.js wrapper creates the workflow pod and starts the $job container.
  4. As the $job container is started, our PVC volume specification causes OpenEBS to snapshot and clone our ZFS Conan cache DataSet. It'll be volumeMount'd just as we did with our devContainer.
  5. Runner.Worker hands off each workflow job step to the k8s/index.js wrapper for execution in the $job container.
  6. Upon job completion, the ZFS cache PVC, $job container, and the runner and workflow jobs are all destroyed and resources freed up.

For all of this complex functionality, the configuration involved is remarkably minimal (details below). Understanding how the Runner and hook operate is critical to setting it up correctly and troubleshooting any issues with your workflows in the future.

Issues with containerMode: kubernetes#

This solution satisfies our functional requirements nicely, but still has some rough spots and limitations we'll need to work around.

  • k8s/index.js doesn't show its work

    When compared with containerMode: dind, or a shell runner operating a containerized workflow, k8s/index.js doesn't log much information unless an error is encountered. This is especially evident in the container orchestration done to prepare a job for running prior to starting it.

    For troubleshooting workflow issues at runtime, the GitHub Actions logs do not give us much information to work with. This probably benefits our security posture by not exposing as many details about our infrastructure, but it also limits our diagnostic capability.

    To illustrate this issue, check out the screenshots below with the log output from running the same containerized workflow using shell and kubernetes runners (particularly the "Initialize containers" step):

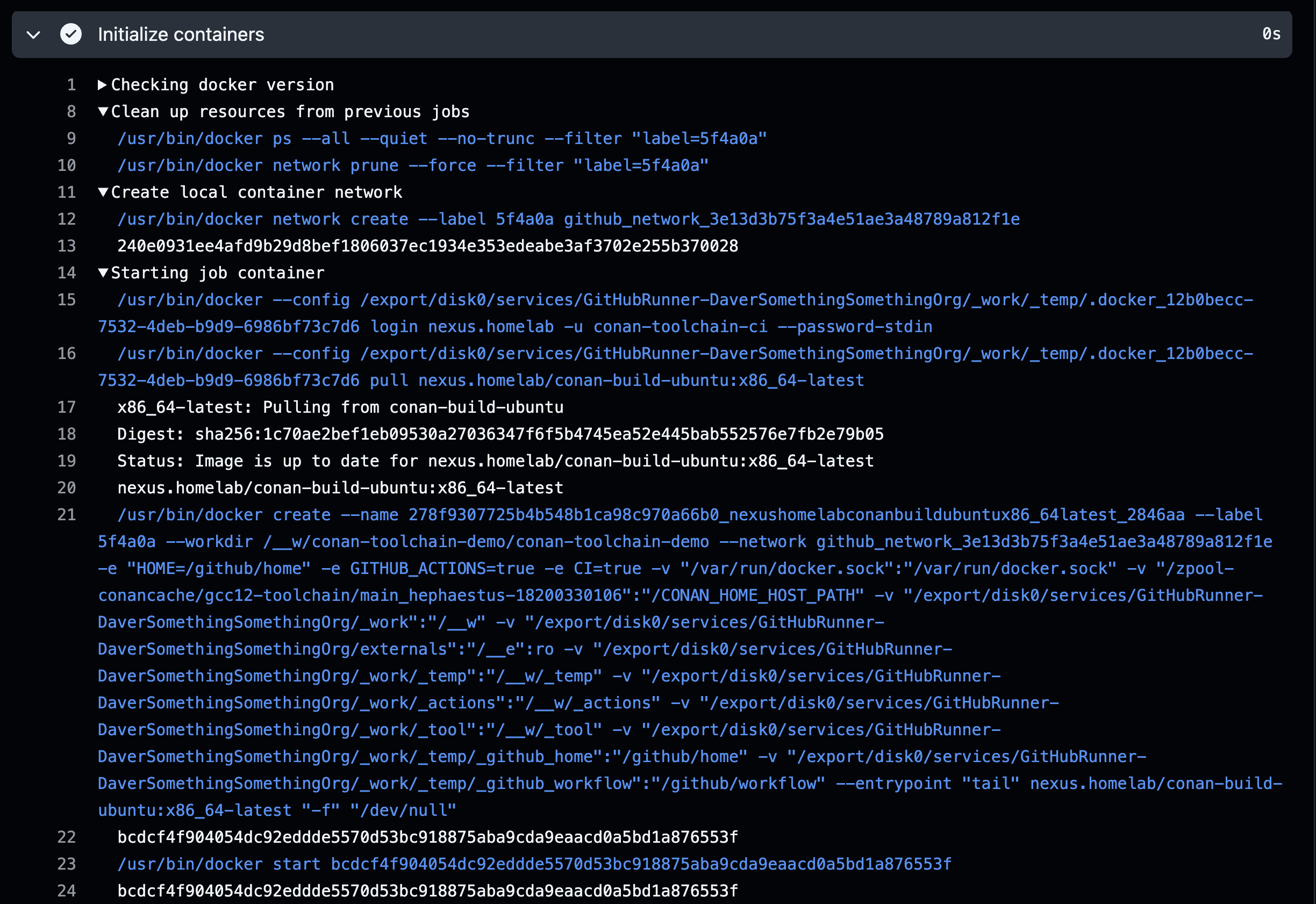

    Example: Shell Runner "Initialize containers" workflow step

    Example: Shell Runner "Initialize containers" workflow step

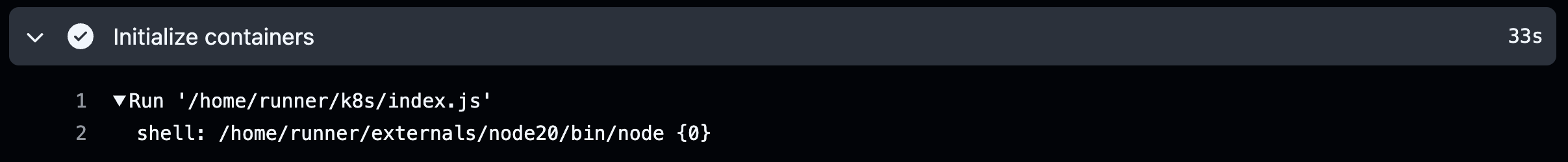

    Example: ARC K8s Runner "Initialize containers" workflow step

    Example: ARC K8s Runner "Initialize containers" workflow step

  • k8s/index.js is slow!

    From those same screenshots above we can also see a significant difference in the time taken by k8s/index.js vs. orchestrating docker. Without more logging and timing data it's difficult to understand where this additional time is spent, but we'll look into that in the future.

  • The k8s/index.js hook extension is limited to the Workflow Pod definition only

    The hook extension template is only able to modify or extend the Workflow Pod template; it is not capable of orchestrating resources outside of provisioning the Workflow Pod. While this is already a plus over the other configurations discussed below, it is still an inconvenient limitation for our use case.

    Since we cannot create a PersistentVolume within a Pod definition, we can only leverage the automatic snapshot PV provisioning OpenEBS provides when creating a clone PVC. This results in sub-optimal names for each of our snapshots, not directly associated with our clones. If we were able to provision our snapshot PVs directly, we would be able to give them better names to match our clone PVCs.

Warning

Take particular note of the other limitations listed in the k8s/index.js documentation. The limitations listed there did not restrict any functionality of our demo, but YMMV (Your Mileage May Vary) with your own workflows.

containerMode: dind with containerized workflows#

containerMode: dind behaves similarly to containerMode: kubernetes overall, but using a DinD sidecar container to orchestrate the workflow $job container using Docker rather than calling the Kubernetes API.

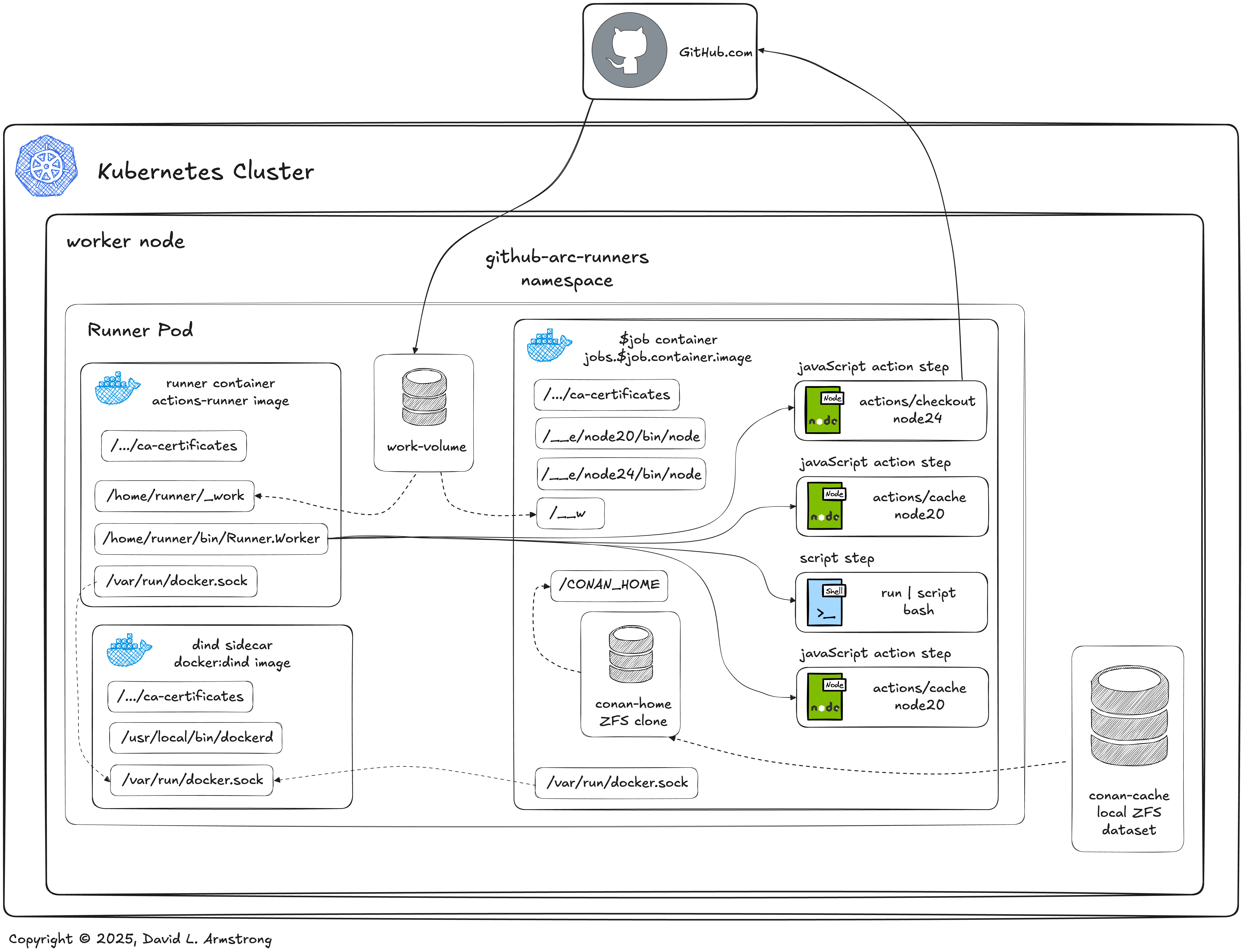

containerMode: dind

Conan and ZFS in GitHub ARC box diagram

Issues with containerMode: dind#

  • Docker-in-Docker offers no Kubernetes/OpenEBS integration

    Without a means to work with the Kubernetes API, we cannot leverage OpenEBS to provision snapshot PVs or clone PVCs when starting the $job container for the workflow.

    We do have access to the Runner container spec, so we can provision a snapshot/clone at Runner start time. Making this clone PVC available to the workflow $job container is awkward at best, however.

  • Docker-in-Docker security options are more limited.

    When using Docker-in-Docker, the workflow $job container is running in the same pod as the Runner container. This means they share the same network and IPC namespace, potentially exposing your Runner infrastructure to security vulnerabilities introduced by the workflow and it's specified container image.

Non-Containerized Workflows#

Non-containerized workflows generally work very similarly with either containerMode. No workflow $job container will be created, and workflows will run directly in the Runner container. In effect they are very similar to using the Runner container as a dynamically scaled shell runner.

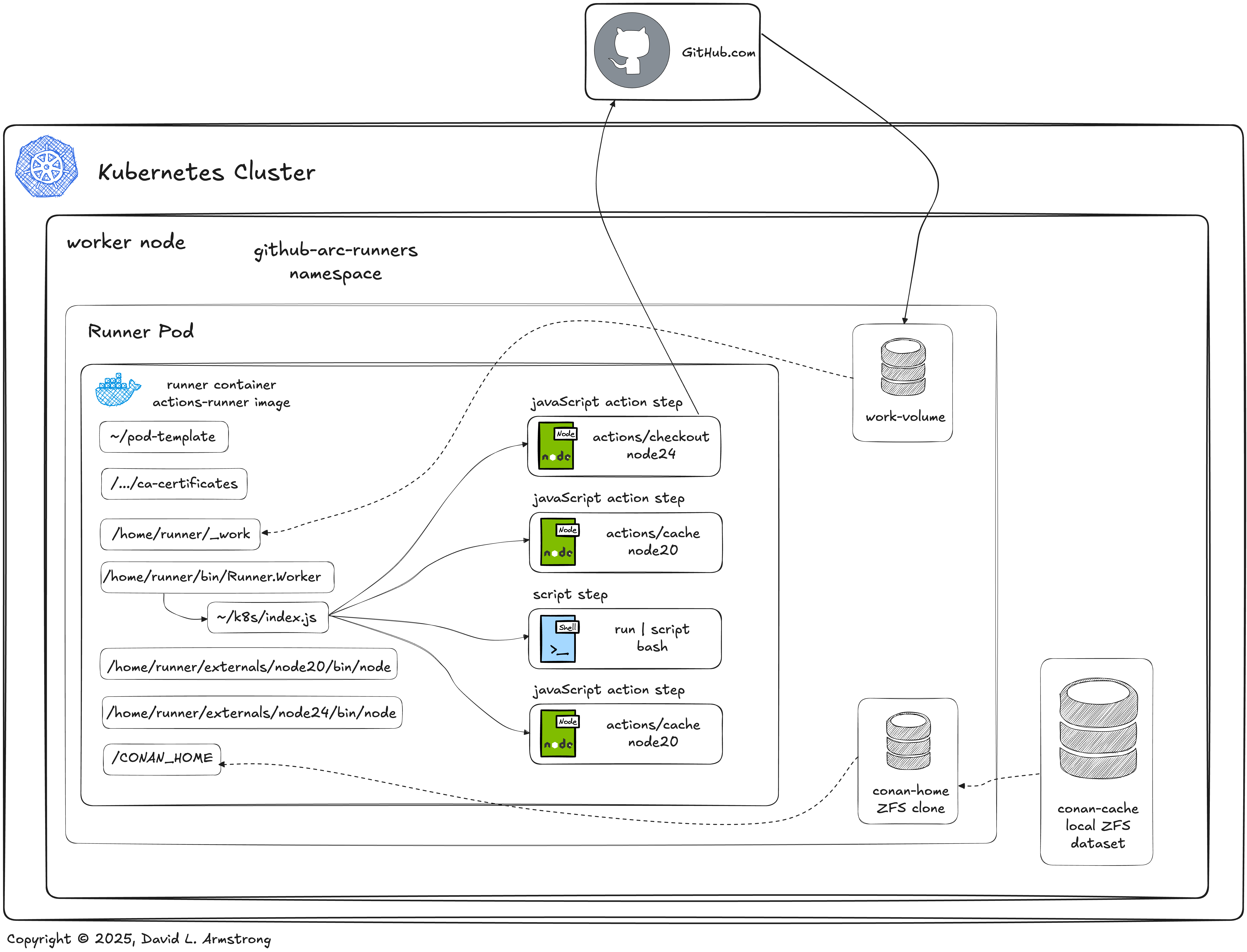

Non-Containerized Workflows

Conan and ZFS in GitHub ARC Non-Containerized Workflow box diagram

Issues with Non-containerized Workflows#

Non-Containerized Workflows with GitHub ARC are sub-optimal for a variety of reasons.

  • Customizing the container

    Customizing the Runner container requires redeploying the RunnerScaleSet with an updated container image, or making the modifications at workflow runtime. In order to modify the Runner container image, the Runner software needs to be installed, along with any dependencies for actions or the workflows.

    Warning

    "Any updates released for the software, including major, minor, or patch releases, are considered as an available update. If you do not perform a software update within 30 days, the GitHub Actions service will not queue jobs to your runner. In addition, if a critical security update is required, the GitHub Actions service will not queue jobs to your runner until it has been updated."

    GitHub Actions Reference - Self-hosted runners

  • OpenEBS ZFS snapshot and clone are provisioned at Runner start time

    Similar to containerMode: dind with containerized workflows, we are able to mount our OpenEBS ZFS Conan cache PVC to the Runner container, but this is done at Runner start time, not job start time. The snapshot will be as old as the Runner has been idle prior to receiving a job to run.

    For a highly utilized RunnerScaleSet, this is probably not a big deal. If you have RunnerScaleSets assigned to quieter branches however, you may want to minimize the number of standby Runners to ensure the Conan cache clone is up-to-date. This will delay job startup however.

  • Security is minimal

    Your workflows are running with the same privilege and access as your Runner processes. While Kubernetes generally provides a higher level of security in general when compared to shell runners, this is still not recommended.

For best results with our ZFS Conan cache it is recommended to fully disable support for non-containerized workflows.

Configuring GitHub ARC#

For this demo we'll be using the containerMode: kubernetes with containerized workflows configuration. Having the Conan Cache snapshot taken as late as possible (when the job starts) ensures that it is current with the latest component builds available.

A second significant benefit to this approach is the ability to extend the workflow pod configuration without having to redeploy or "upgrade" our RunnerScaleSets, or even restart the runners.

RunnerScaleSet Helm Chart#

First, we configure our RunnerScaleSet to run in kubernetes containerMode and to look for our github-arc-container-hooks hook extension. Click on the embedded annotations in the snippet below for more information.

GitHub ARC kubernetes containerMode configured for hook extension Template

containerMode:
  type: "kubernetes" # (1)!

template:
  spec:
    containers:
    - name: runner
      image: ghcr.io/actions/actions-runner:latest # (2)!
      command: ["/home/runner/run.sh"]
      env:
        - name: ACTIONS_RUNNER_CONTAINER_HOOKS # (3)!
          value: /home/runner/k8s/index.js
        - name: ACTIONS_RUNNER_CONTAINER_HOOK_TEMPLATE # (4)!
          value: /home/runner/pod-template/content
        - name: ACTIONS_RUNNER_REQUIRE_JOB_CONTAINER # (5)!
          value: "true"
      volumeMounts:
        - name: work
          mountPath: /home/runner/_work
        - name: container-hooks-volume # (6)!
          mountPath: /home/runner/pod-template
    volumes:
    - name: work
      ephemeral:
        volumeClaimTemplate:
          spec:
            accessModes: [ "ReadWriteOnce" ]
            storageClassName: "local-path"
            resources:
              requests:
                storage: 1Gi
    - name: container-hooks-volume # (7)!
      configMap:
        name: github-arc-container-hooks

  1. Enable containerMode: kubernetes!

  2. We're using the default Runner container image maintained by GitHub

  3. Location where the k8s/index.js hook is installed in the Runner container image

  4. Location where our hook extension template will be mounted

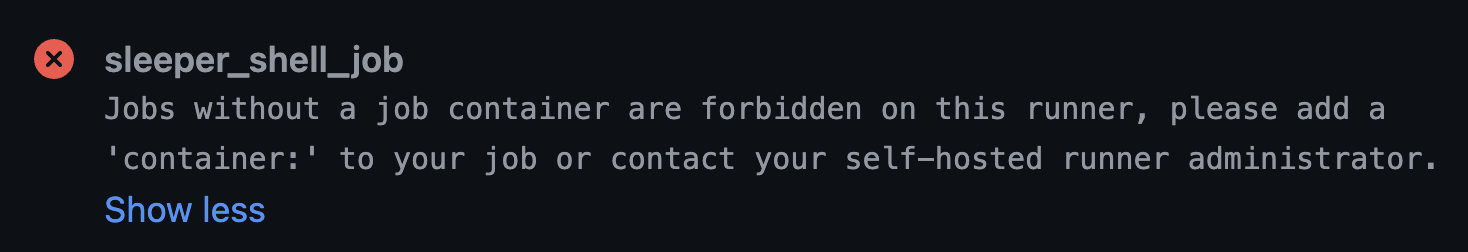

  5. If a job doesn't specify a container, exit with an Error: Error: Jobs without a job container are forbidden on this runner

  6. Mount our hook extension volume where ACTIONS_RUNNER_CONTAINER_HOOK_TEMPLATE can locate it

  7. Set up the volume attached to our hook extension ConfigMap

original source in GitHub

Attach $CONAN_HOME PersistentVolumeClaim using Hook Extension#

Next, we'll define our $CONAN_HOME PersistentVolumeClaim in a ConfigMap within the same namespace as the RunnerScaleSet.

This is done using the ACTIONS_RUNNER_CONTAINER_HOOK_TEMPLATE hook extension functionality of the k8s/index.js hook. See: GitHub ARC Documentation - Configuring hook extensions for more details. This hook "extension" is specifically intended to provide for customization of the $job workflow container Pod.

Reference: Mounted ConfigMaps are updated automatically

GitHub ARC Hook Extension ConfigMap

apiVersion: v1
kind: ConfigMap
metadata:
  name: github-arc-container-hooks # (1)!
data:
  content: \| # (2)!
    metadata:
      annotations:
        example: "extension"
        annotated-by: "extension"
      labels:
        labeled-by: "extension"
    spec:
      containers:
        - name: $job
          volumeMounts:
            - name: conan-home
              mountPath: /CONAN_HOME
          env:
            - name: CONAN_HOME # (3)!
              value: /CONAN_HOME
      volumes:
        - name: conan-home
          ephemeral:
            volumeClaimTemplate:
              spec:
                accessModes: [ "ReadWriteOnce" ]
                storageClassName: "openebs-zfspv"
                dataSource:
                  name: gcc12-toolchain-main # (4)!
                  kind: PersistentVolumeClaim
                resources:
                  requests:
                    storage: 200Gi # (5)!

  1. The name we use to identify the container-hooks-volume in our RunnerScaleSet values.yaml above

  2. The file will be named content and needs to match ACTIONS_RUNNER_CONTAINER_HOOK_TEMPLATE in our RunnerScaleSet values.yaml above. It is technically yaml, but it's not part of this ConfigMap manifest, it's copied into a separate mainfest.

    Danger

    We escape the | here with \ to allow mkdocs to annotate the yaml below, it must not be escaped in the actual ConfigMap!

  3. Let Conan know where we mount our OpenEBS ZFS Conan cache volume

  4. The name of our parent OpenEBS ZFS PersistentVolumeClaim to snapshot and clone from

  5. Make sure this matches the storage requested by the parent PVC!

original source in GitHub

GitHub Actions Workflow#

For this demo I've implemented a simple GitHub Actions Workflow ConanZFSDemo-ARC.yml.

Since all of the ZFS work is done by the Runner on job setup, we only need to configure the conan-toolchain.yml workflow to locate our Conan Cache PVC in /CONAN_HOME.

Configuring the conan-toolchain workflow to use our /CONAN_HOME PersistentVolumeClaim
jobs:
  conan_toolchain:
    uses: DaverSomethingSomethingOrg/conan-github-workflows/.github/workflows/conan-toolchain.yml@main
    with:
      conan_home: "/CONAN_HOME" # (1)!
      [...]
  1. Our reusable workflow defines its own default $CONAN_HOME environment variable for reliability, so we need to specify where our Runners mount our cache clone. (otherwise we could trust $CONAN_HOME provided by the workflow $job container environment)

Limitations and Open Issues#

The PVC and ZFS clone are removed at job completion#

When the runner pod is destroyed, our cache clone PVC and underlying ZFS snapshot and clone are all destroyed, regardless of build success or failure.

If we wish to retain the build or any cache modifications made during the workflow, we'll need to add additional workflow steps to save them outside of the Runner prior to job completion.

Using this mechanism, failed builds cannot be saved through the cache clone directly.

The PVC is provisioned against a static clone#

Since we specify the clone parent in the Hook Extension ConfigMap, this clone is not updated dynamically like we do in our non-Kubernetes workflow using zfs promote.

If our RunnerScaleSet is deployed to the Organization rather than a single repo, then all workflows accessing the RunnerScaleSet will share the same cache. In order to accommodate distinct parent clones, independent RunnerScaleSets would be required.

This is good for efficiency and performance, but requires coordination to update the original parent clone.

Modifying the hook extension ConfigMap is a mechanism we could use to replace the zfs promote operation in our workflow. We can simply swap out the PVC parent clone dataSource the runner pod will snapshot from at job startup time.

What's Next#

By this point the skeleton of our solution is pretty complete! We've shown the direct build performance improvement delivered by our ZFS Conan Cache. We've also shown how to provide this benefit to Developers with Kubernetes-hosted devContainers, and we've tied it into CI with GitHub ARC as well.

For next steps we need to start looking at bringing this solution to production. We need to dig in on end-to-end performance and security. We'll also start attacking ease-of-use for both adminstrators and users.

Performance Optimization#

While this solution demonstrates our ability to leverage ZFS for maximum Conan build performance/avoidance, there are still a few steps we can take to optimize GitHub ARC and Runner performance, especially in job startup time.

Security Concerns#

There are many security implications and configuration options with this solution along with the performance concerns. While GitHub ARC ships with reasonable defaults for many environments, we'll need to explore and refine the configuration for our own environment and needs prior to promoting this solution for production use.

Cache Promotion#

When we build updated components in our cloned cache, we're not able to promote the updated clone to parent for future builds to leverage.

The ConfigMap we're using to identify the parent dataset to clone from can certainly help us here, but we need to be careful to avoid race conditions when doing so. We don't want a clone being pulled from a cache that's in the process of being updated!

Saving Broken Builds for Troubleshooting#

With this setup we have the advantage of having an entire Pod setup we can use to reproduce issues. Not only do we have the cache clone available, we also have the container used for the build.

By default these Runner and Workflow Pods are not persisted after job completion. We'll want to work out a mechanism that allows those Pods to persist after job completion, but also be careful not to leave too many Runner Pods laying around using up our cluster resources, even if they are idle.

Conclusion#

GitHub ARC with OpenEBS for our ZFS Conan Cache is a highly scalable and flexible system providing a strong integration between the infrastructure and the workflow.

There are a couple drawbacks however:

  • While it's fairly simple to maintain, it is complicated to set up.

  • While our CI snapshots and clones are neatly provisioned and cleaned up, we don't get the benefit of zfs promote, zfs rename, or other more complicated ZFS operations. This requires additional management automation working behind the scenes.
